xBot Header to Nucleo Adapter

by deltagraph.

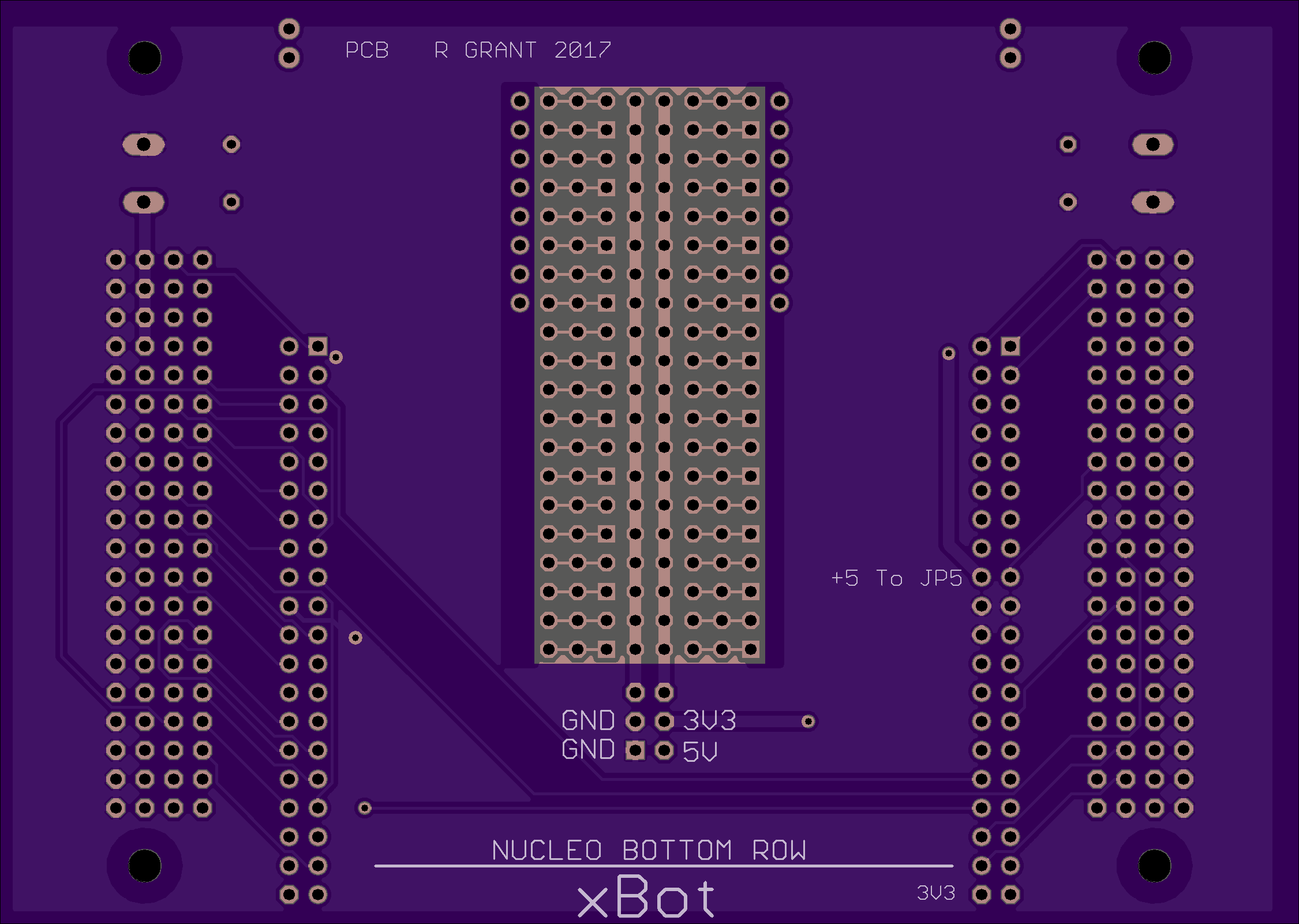

Top

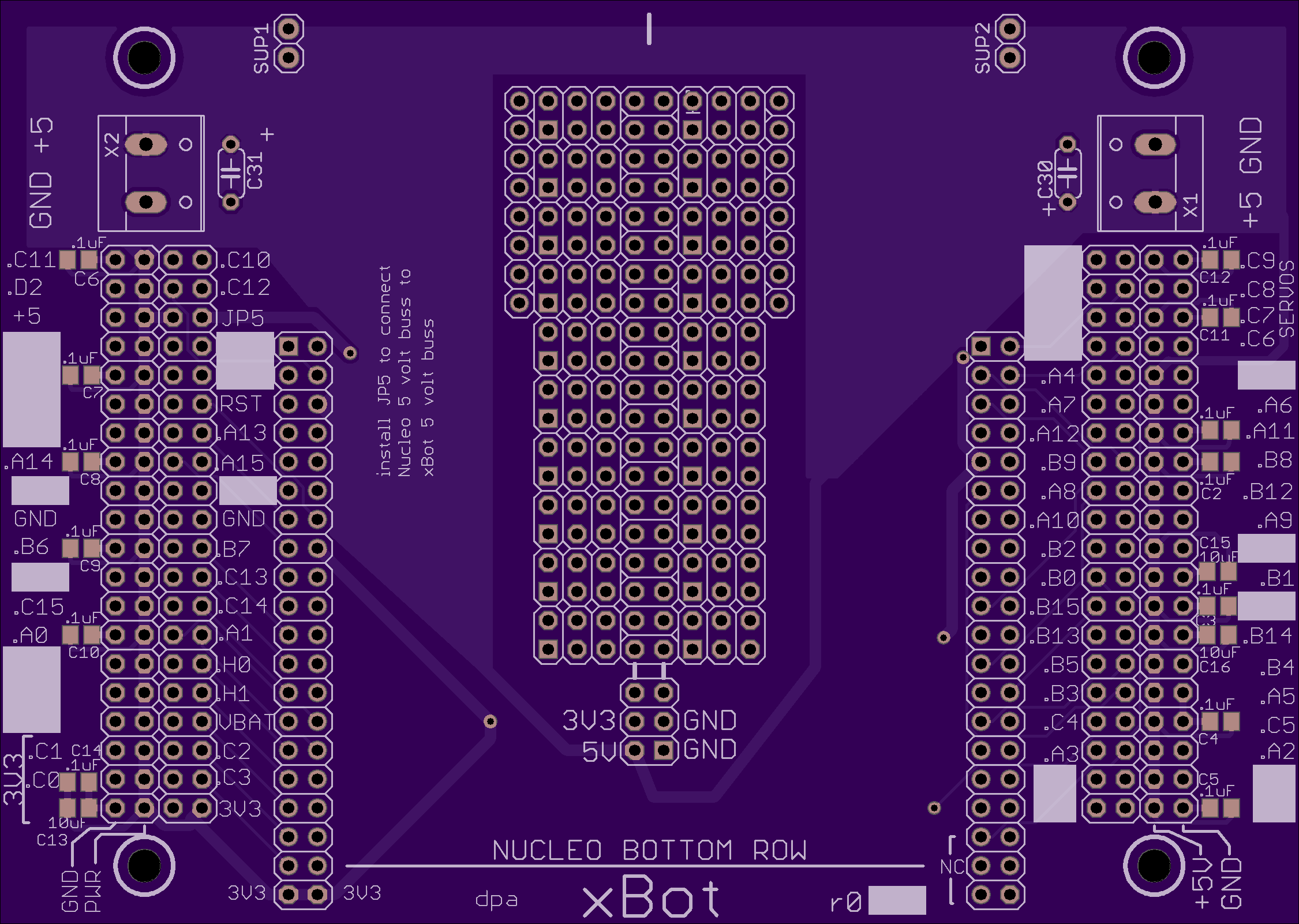

Bottom

2 layer board of 4.50x3.20 inches (114.30x81.28 mm).
Shared on February 20th, 2017 18:53.

specialized header board for xBot Robot not documented yet for general application use. NucleoBot_DPA_1.brd
