Unipolar Stepper Motor Driver ver2

by csantex.
Top

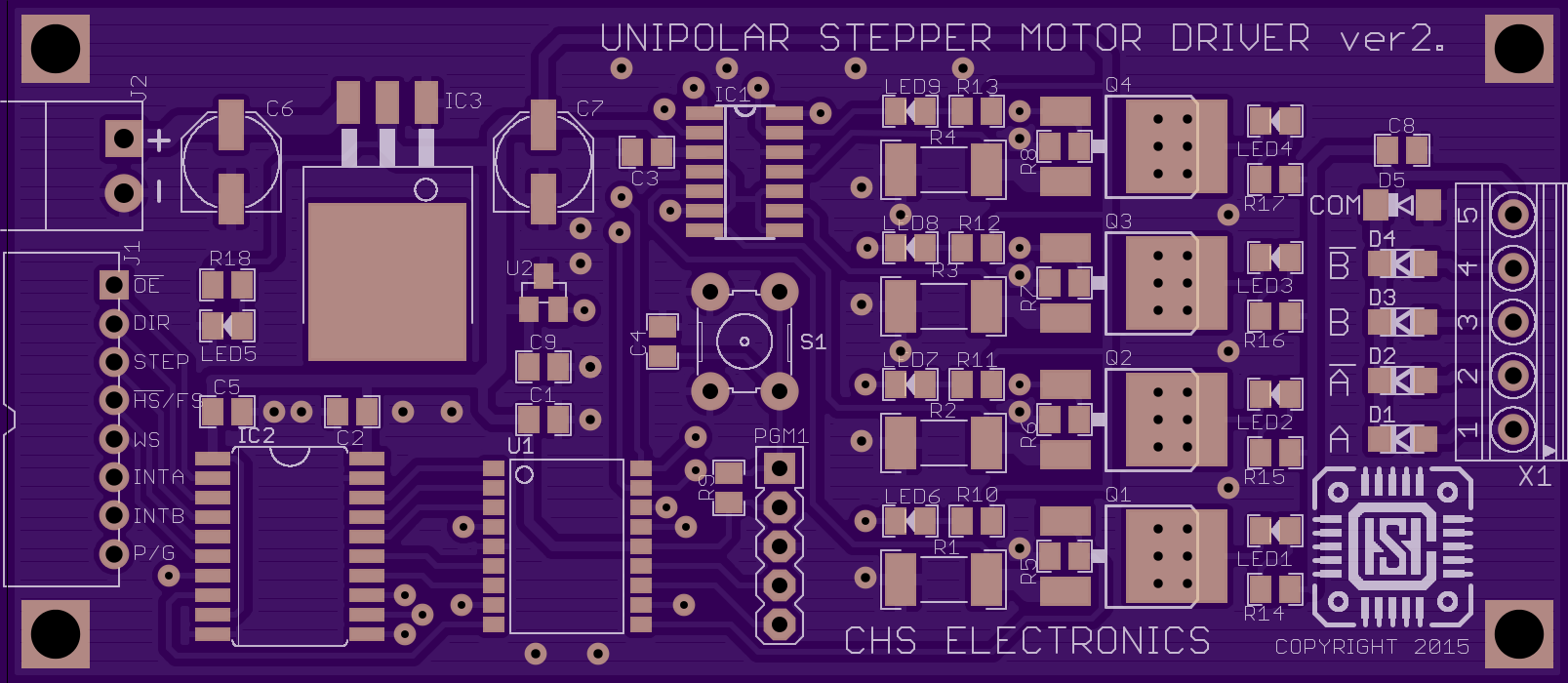

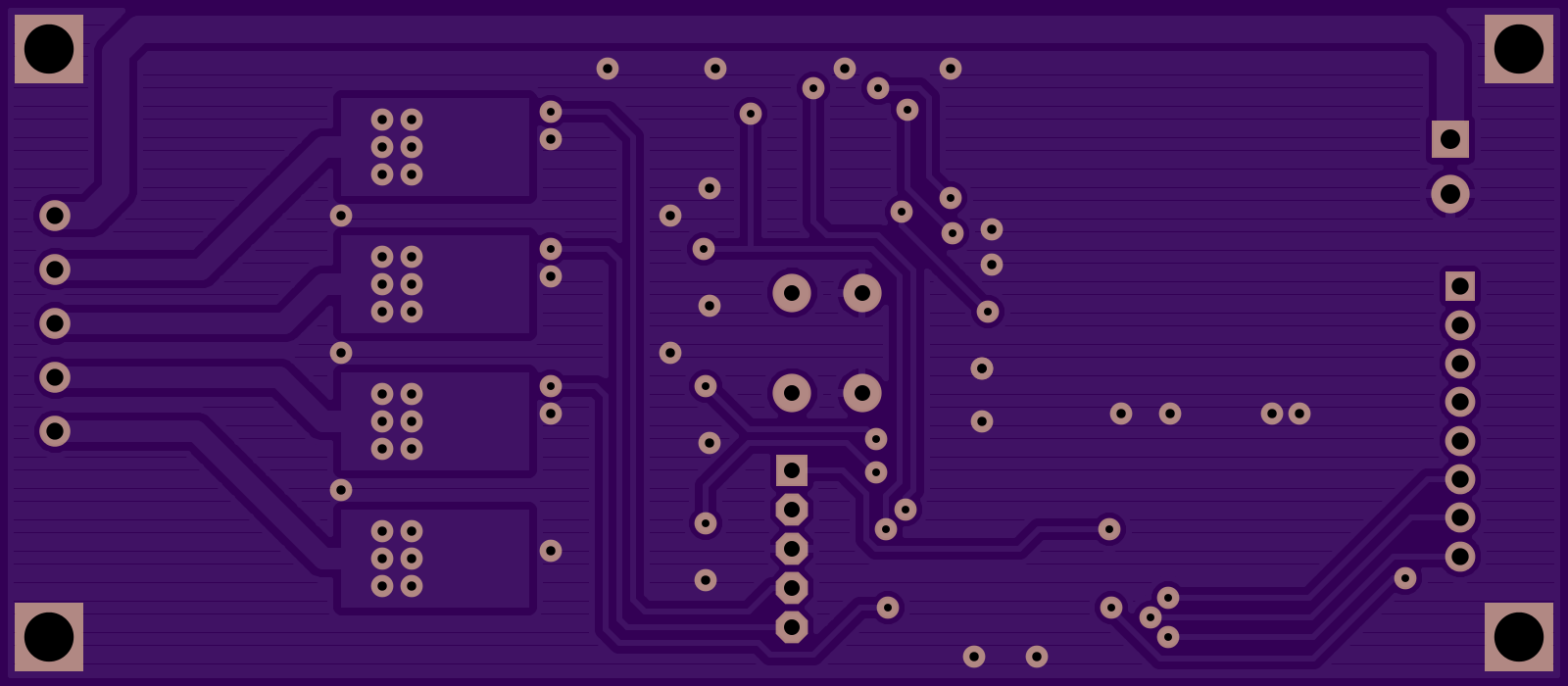

Bottom

2 layer board of 4.00x1.75 inches (101.60x44.48 mm).
Shared on May 31st, 2015 23:21.

Proto for Unipolar Stepper Motor Driver. Powered by 12VDC and 5VDC 3A linear regulator. Includes overcurrent detection set to currents greater than 1.75A and RED LED indicators.
