RC2014 Board 6 - Serial IO

by semachthemonkey.
Top
Bottom

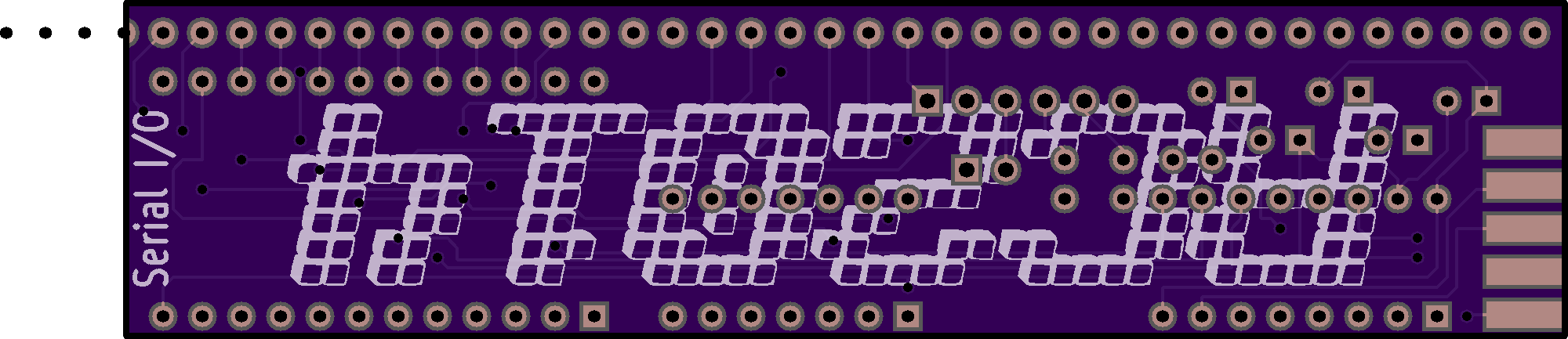

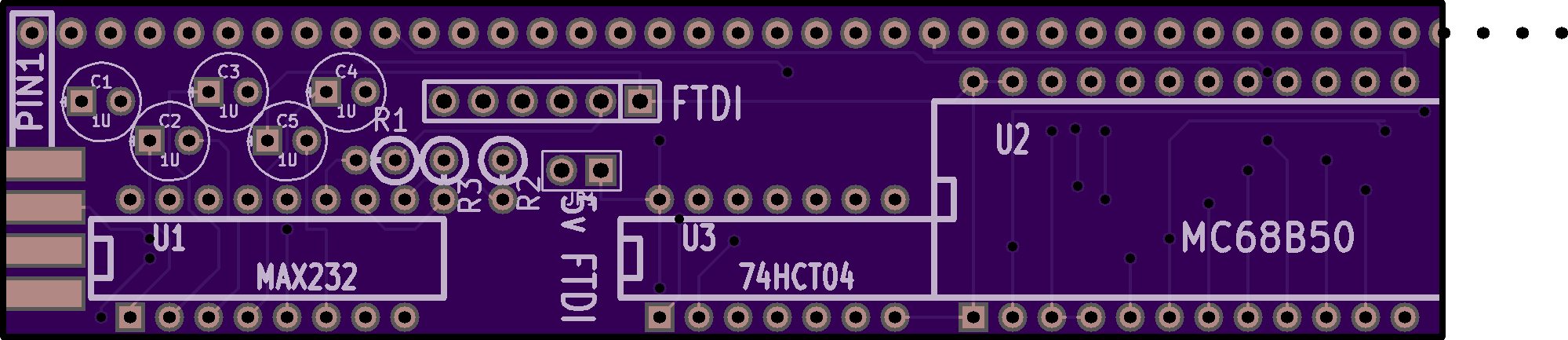

2 layer board of 3.69x0.87 inches (93.62x22.00 mm).
Shared on July 31st, 2014 18:52.

Simple multiboard Z80 computer I designed for Retro Challenge 2014. For more info see http://www.sowen.com/category/retro-challenge/ Tested and working. Uses 74HCT04, MC68B50, MAX232, 1uf caps, 2k2 resistors for FTDI
