Rotary Encoder MMJOY2.zip

by Brewnix.

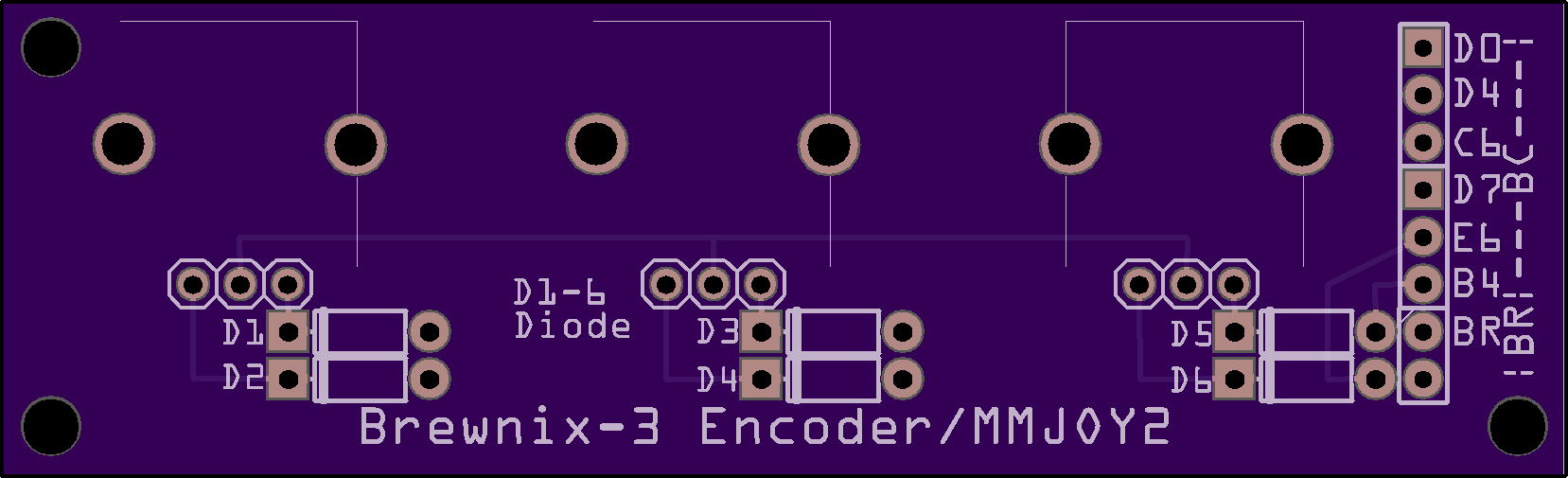

Top

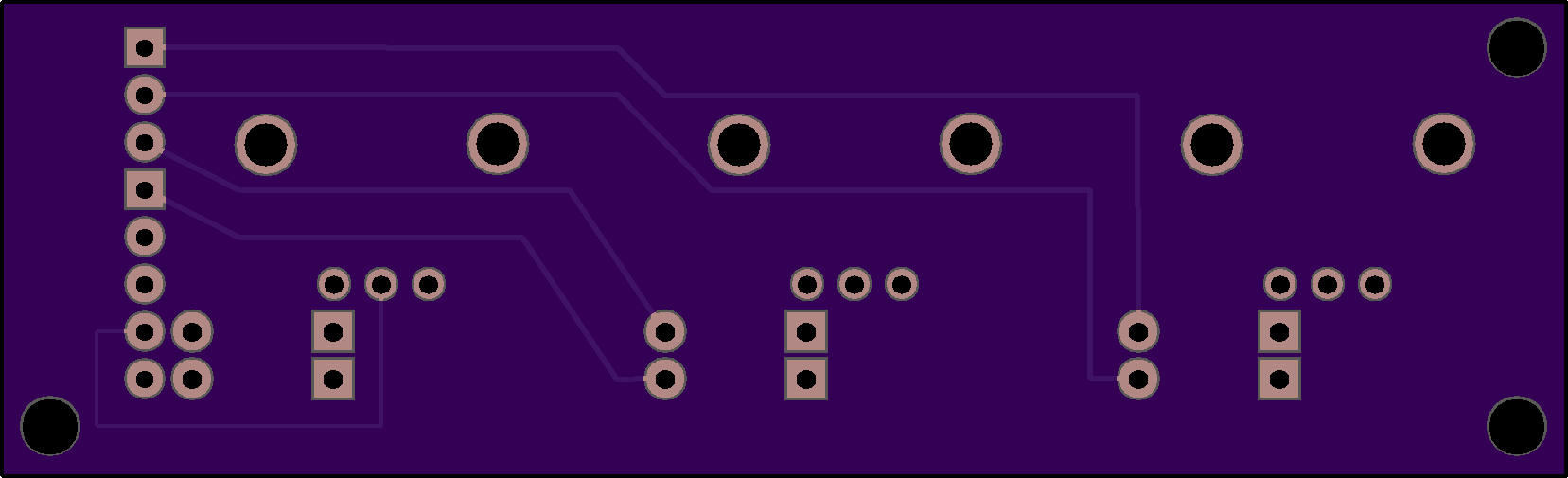

Bottom

2 layer board of 3.32x1.01 inches (84.20x25.68 mm).
Shared on December 23rd, 2016 04:51.

This a a board of 3 rotary endcoders matrix with diodes wired to Promicro programmed with with MMJOY2 currently working in a radio panel I put together. Tested and works
