ShiftLCD

by jamolnng.

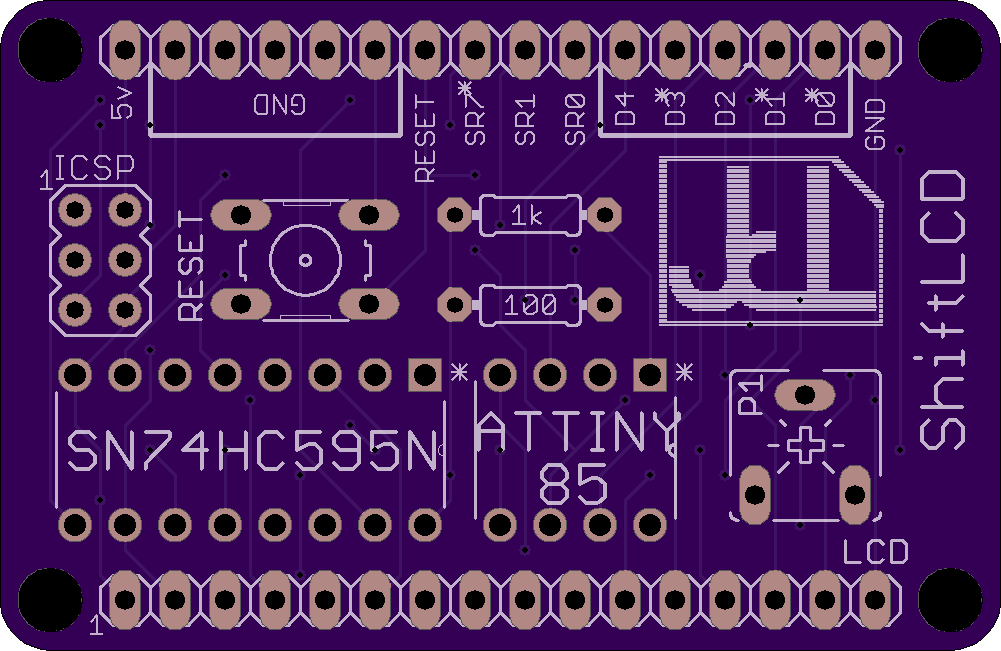

Top

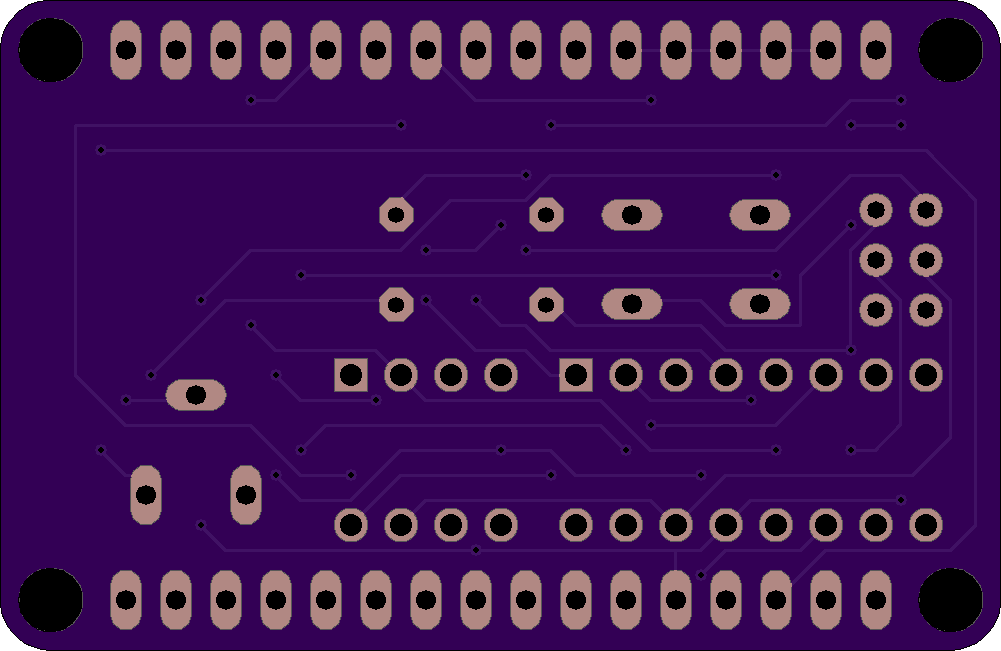

Bottom

2 layer board of 2.00x1.30 inches (50.80x33.02 mm).
Shared on March 19th, 2014 21:13.

Character LCD driven by an ATTiny85 and 74HC595 IC’s.

Driver Library

ShiftLCD

Parts:

ATTiny85-20PU

Shift Register (SN74HC595N)

HD44780LCD

Button (Reset)

30k Potentiometer

1k Ohm Resistor

100 Ohm Resistor
