STM32F415RG breakout board

by BradGrantham.

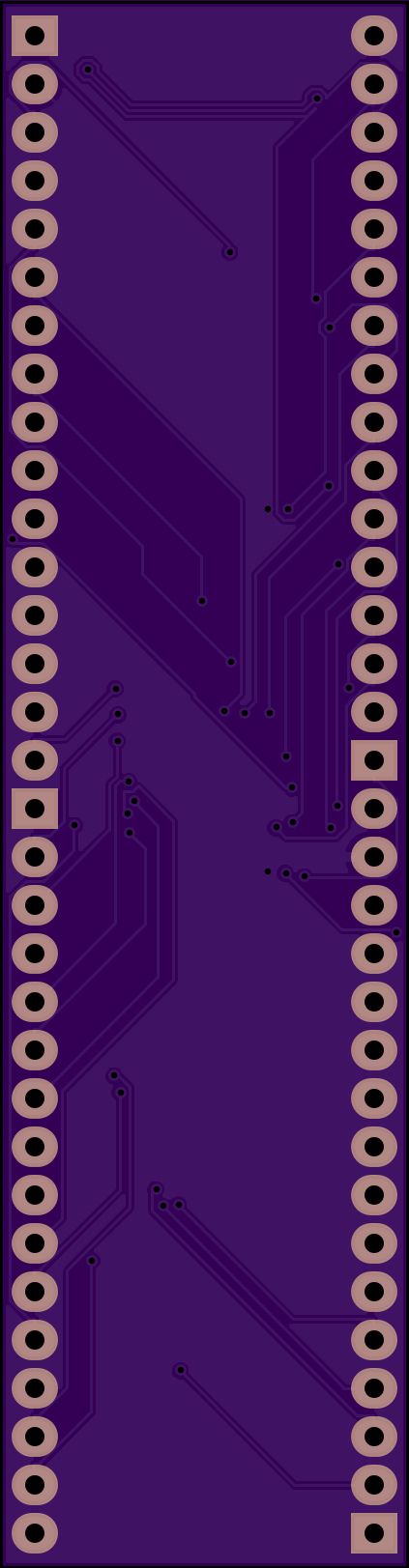

Top
Bottom

2 layer board of 0.85x3.25 inches (21.49x82.45 mm).
Shared on February 18th, 2016 20:44.

64-pin DIP breakout for the STM32F415RG

Not Yet Tested

This Cortex M4 features 168MHz max clock, RTC, and SDIO. Of course it has the usual SPI, I2C, parallel LCD, USARTs.

KiCAD files on Github for this version

We’re using this ARM chip in the Alice 3.

This board is almost certainly not usable for a general 64LQFP breakout, because it connects some pins to each other and with copper pours (zone fills).
