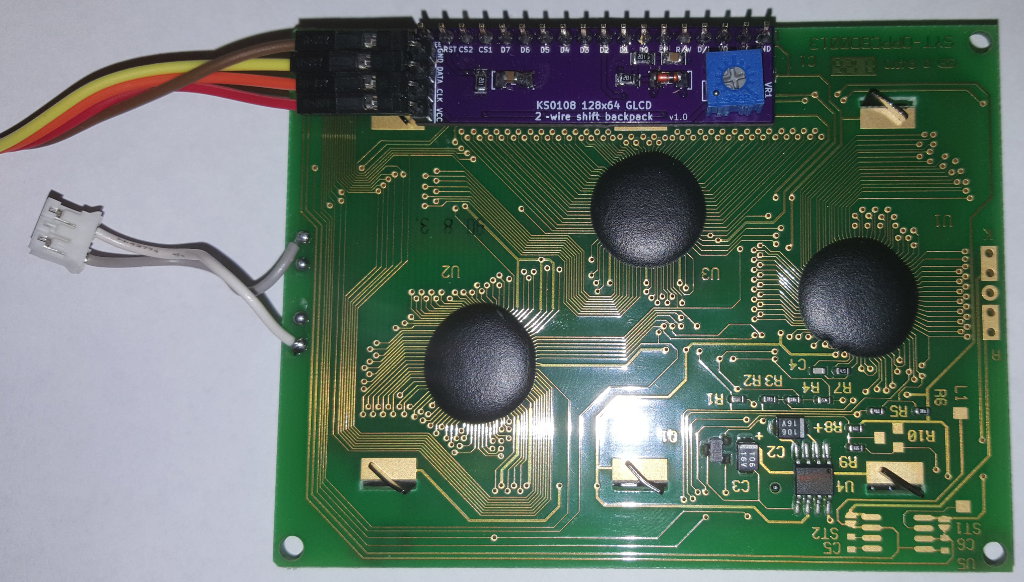

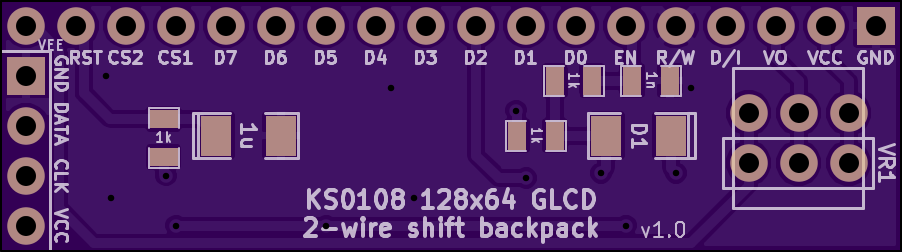

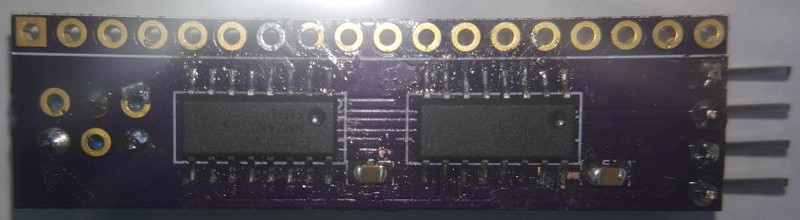

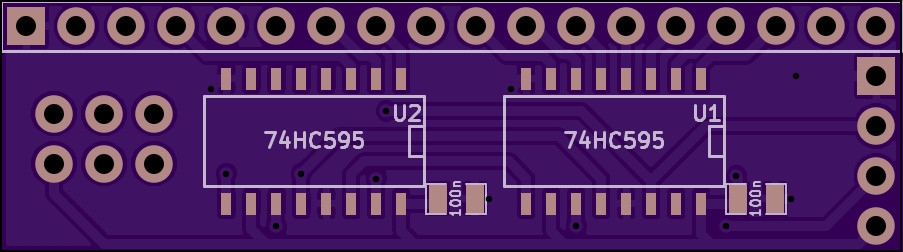

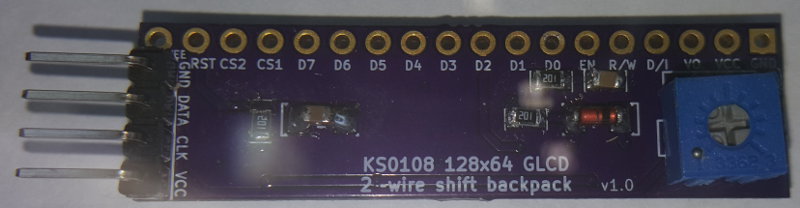

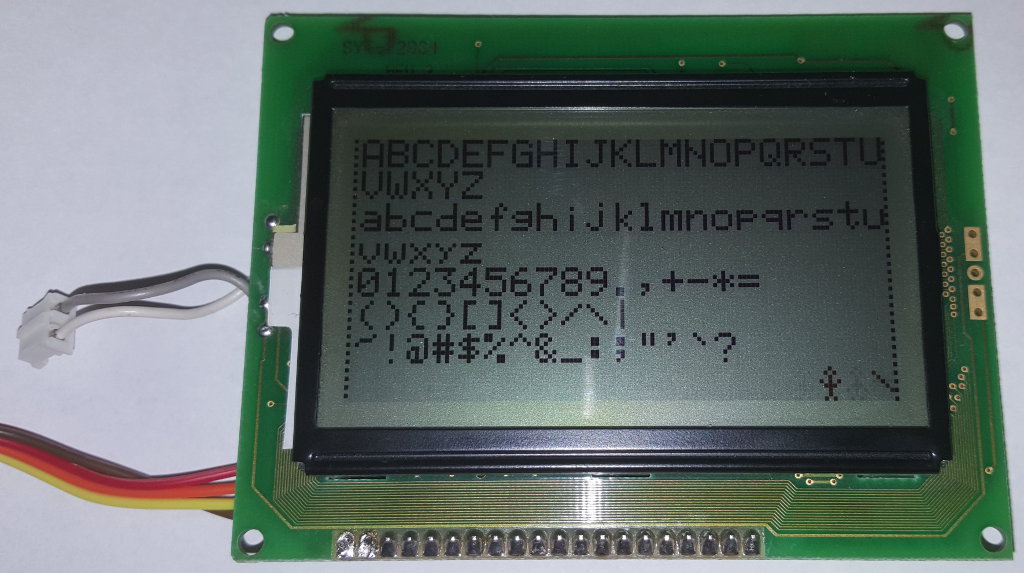

KS0108 128x64 Graphic LCD - 2-wire shift register backpack - v1.0
by
serisman.
2
layer board of
1.80x0.50
inches
(45.82x12.80
mm).
Shared on
February 19th, 2016 03:04.
KS0108 128x64 Graphic LCD - 2-wire shift register backpack - v1.0
$1.50 each ($4.50 for 3)
NOTE: Working design, but AVR-GCC / Arduino library have not yet been published.
Component: [Sizes] Values (description)
- U1,U2: [SOIC-16N] 74HC595 (the shift registers)
- VR1: [3296W, 3362P (or similar)] 10k (for contrast control)
- C1,C2: [0805] 0.1uF (decoupling capacitors)
- C3: [1206] 1uF (for reset delay)
- C4: [0805] 1nF (for LCD enable line delay)
- D1: [SOD80 (~1206)] LL4148 (for shift register latch)
- R1,R2,R3: [0805] 1k (for shift register latch and LCD enable line delay)
https://bitbucket.org/serisman/pcb-ks0108-128x64-glcd-backpack
