PB410/420 Serial port

by Switching-Power.

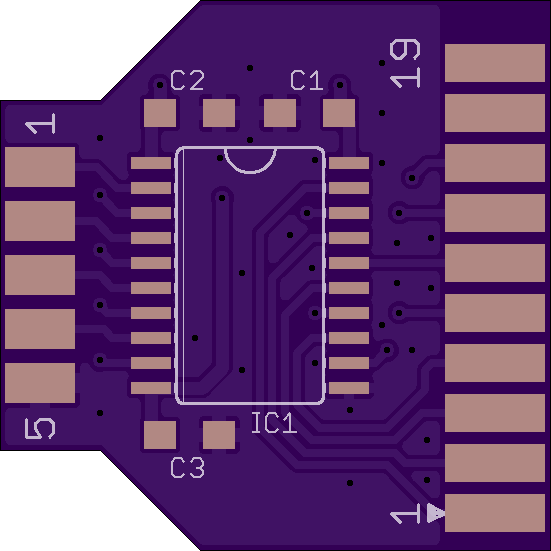

Top

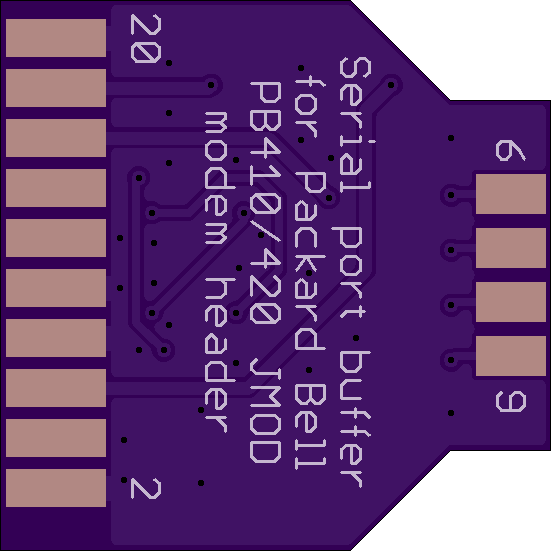

Bottom

2 layer board of 1.10x1.10 inches (27.94x27.94 mm).
Shared on July 30th, 2016 11:34.

Serial port buffer for Packard Bell PB410/420 Motherboard JMOD modem header.

  • IC1 - GD75232
  • C1-3 - 10µf 25V tantalum case A
