7-segment LED strip driver

by tkbletsc.
Top
Bottom

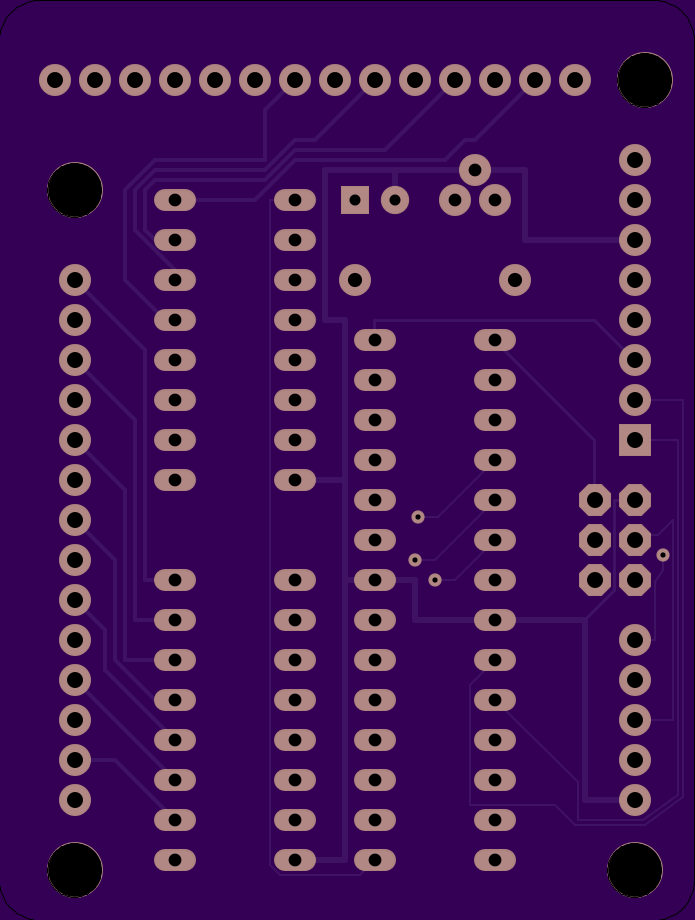

2 layer board of 1.74x2.30 inches (44.15x58.42 mm).
Shared on January 26th, 2015 05:37.

For use with an ATMEGA328P and two ULN2003A darlington arrays. Drives up to 14 short lengths of LED strip, presumably to form a two-digit seven-segment display.
