NSM4202A

by TheSpruceMoose.

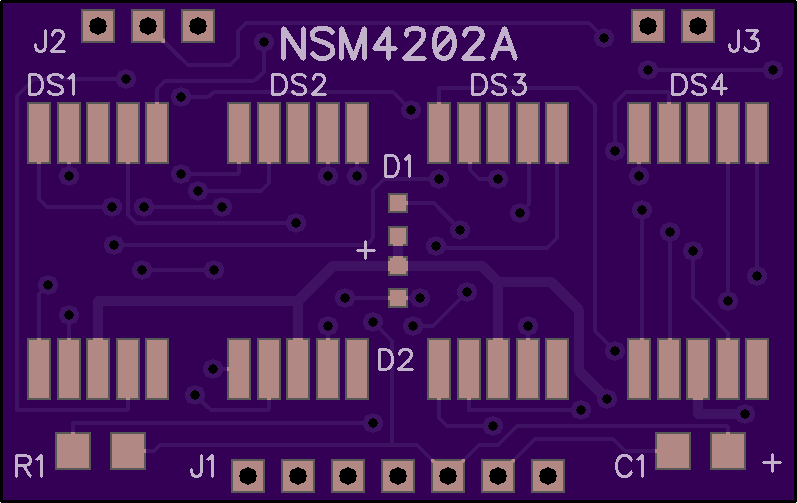

Top

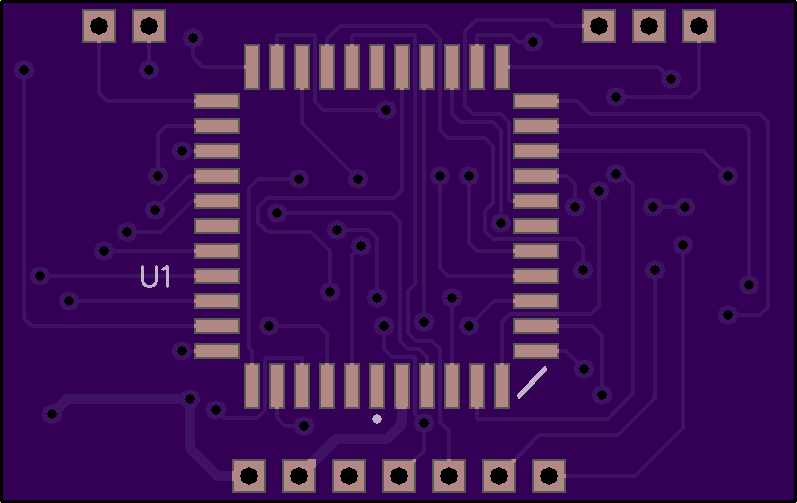

Bottom

2 layer board of 1.59x1.01 inches (40.46x25.55 mm).
Shared on July 29th, 2014 01:12.

Functional Replacement for Philips NSM4202A Display Module

BOM:

  • U1 - Micrel MM5450 (PLCC-44) LED Display Driver
  • DS1-DS4 - Kingbright ACSA03-41SGWA-F01 7-Segment Common-Anode LED Display
  • D1-D2 - 0603 SMD LED (Green for use with the specified green LED digits)
  • R1 - 7.5kOhm (or higher) 1206 SMD Resistor (controls brightness)
  • C1 - 1000pF 1206 SMD Capacitor
  • J1-J3 - 0.1" header system of your choice
