Cache Maker Uno R2

by capnregex.
Top
Bottom

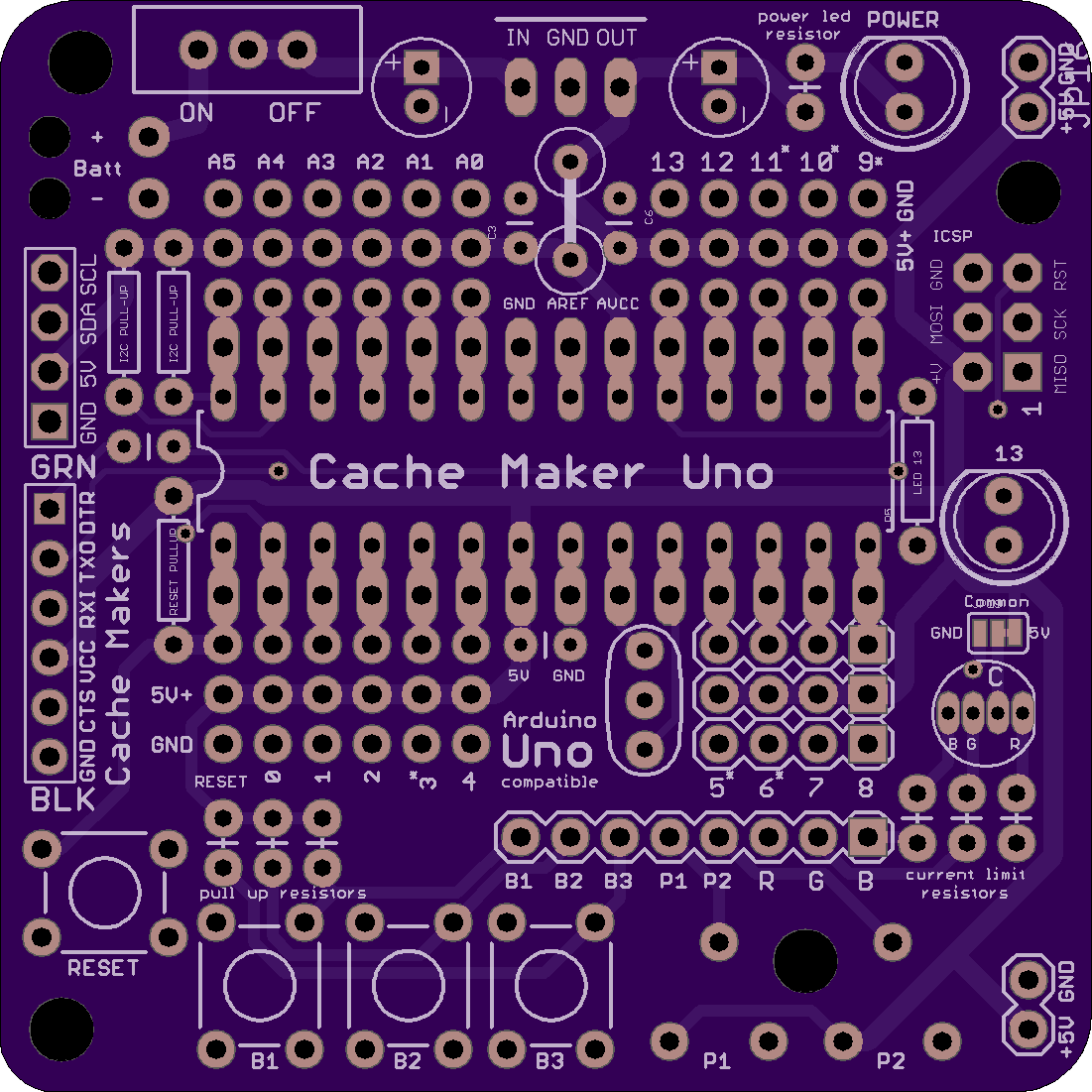

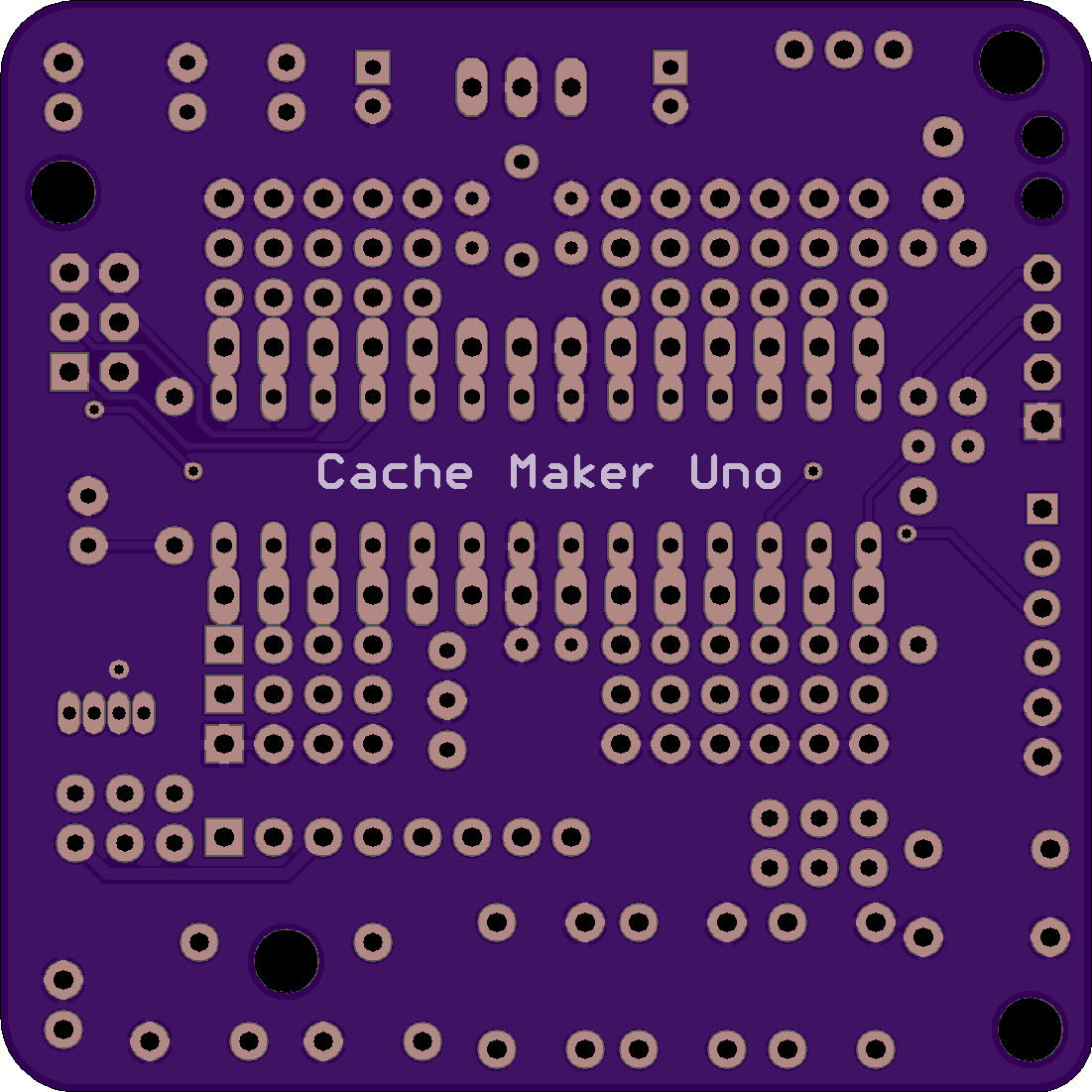

2 layer board of 2.20x2.20 inches (55.88x55.91 mm).
Shared on July 12th, 2014 02:33.

Changes

  • Moved the power pins for breadboard into the corners
  • made the holes for the regulator larger
  • moved the RGB LED and added in a solder jumper for the common pin.
