Pi Attenuator (0603)

by SyncChannelBlog.

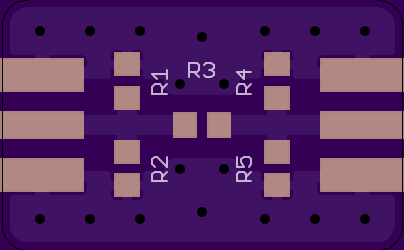

Top

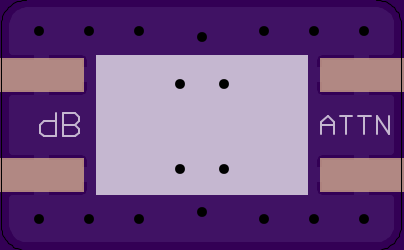

Bottom

2 layer board of 0.80x0.50 inches (20.32x12.70 mm).
Shared on February 8th, 2016 04:02.

This version uses 0603 resistors.
