26mm contact board for 20mm driver

by Red.

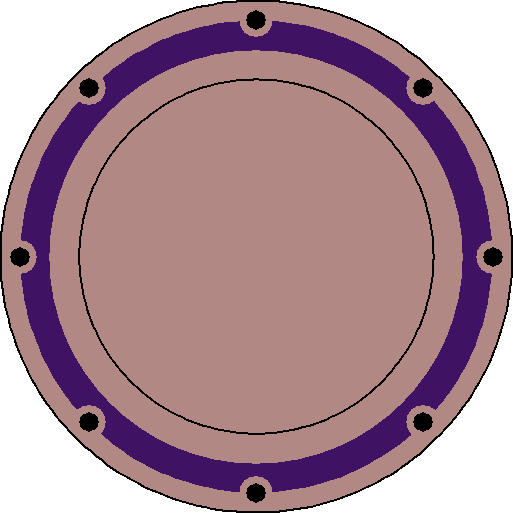

Top

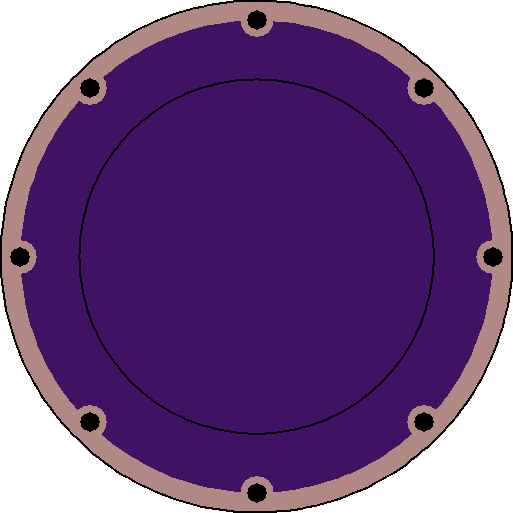

Bottom

2 layer board of 1.03x1.03 inches (26.11x26.11 mm).
Shared on May 25th, 2014 04:01.

v4 - 18mm hole for 20mm driver w/ 1mm of overlap. 2mm wide exposed copper area leaves 1mm for soldering iron.
