SNES LoROM Multi Cart

by ziggy587.

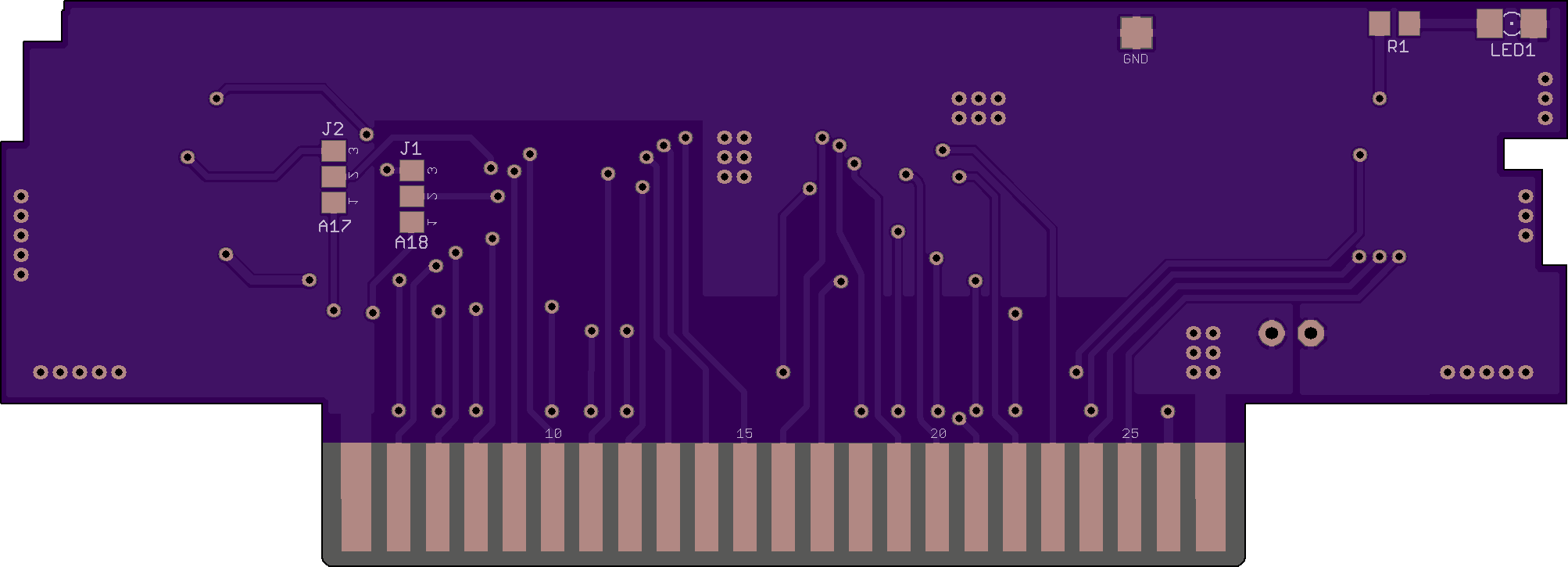

2 layer board of 4.01x1.45 inches (101.93x36.86 mm).
Shared on January 6th, 2017 00:53.

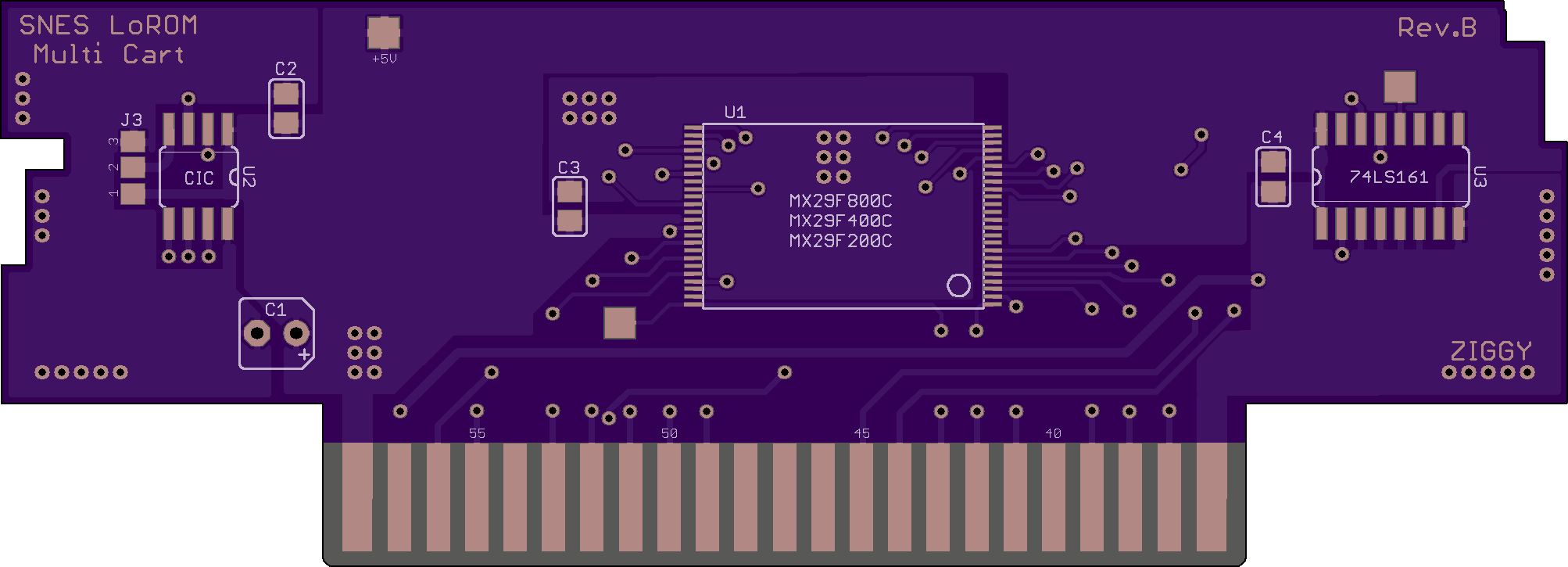

You can use this PCB as a basic LoROM board with a max ROM size of 8Mib. Or, with the 74'161 installed, you can use this board as a 2-in-1 or 4-in-1 multi cart. Games are switched by console reset.

Use the SuperCIC key, found here: https://sd2snes.de/blog/cool-stuff/supercic

Caps, jumpers and resistors are 0805, C1 is through hole. LED is 1206. I will add a parts list and how-to.
