T.I.C.K. Wifi Mk 1.1

by schizobovine.
Top
Bottom

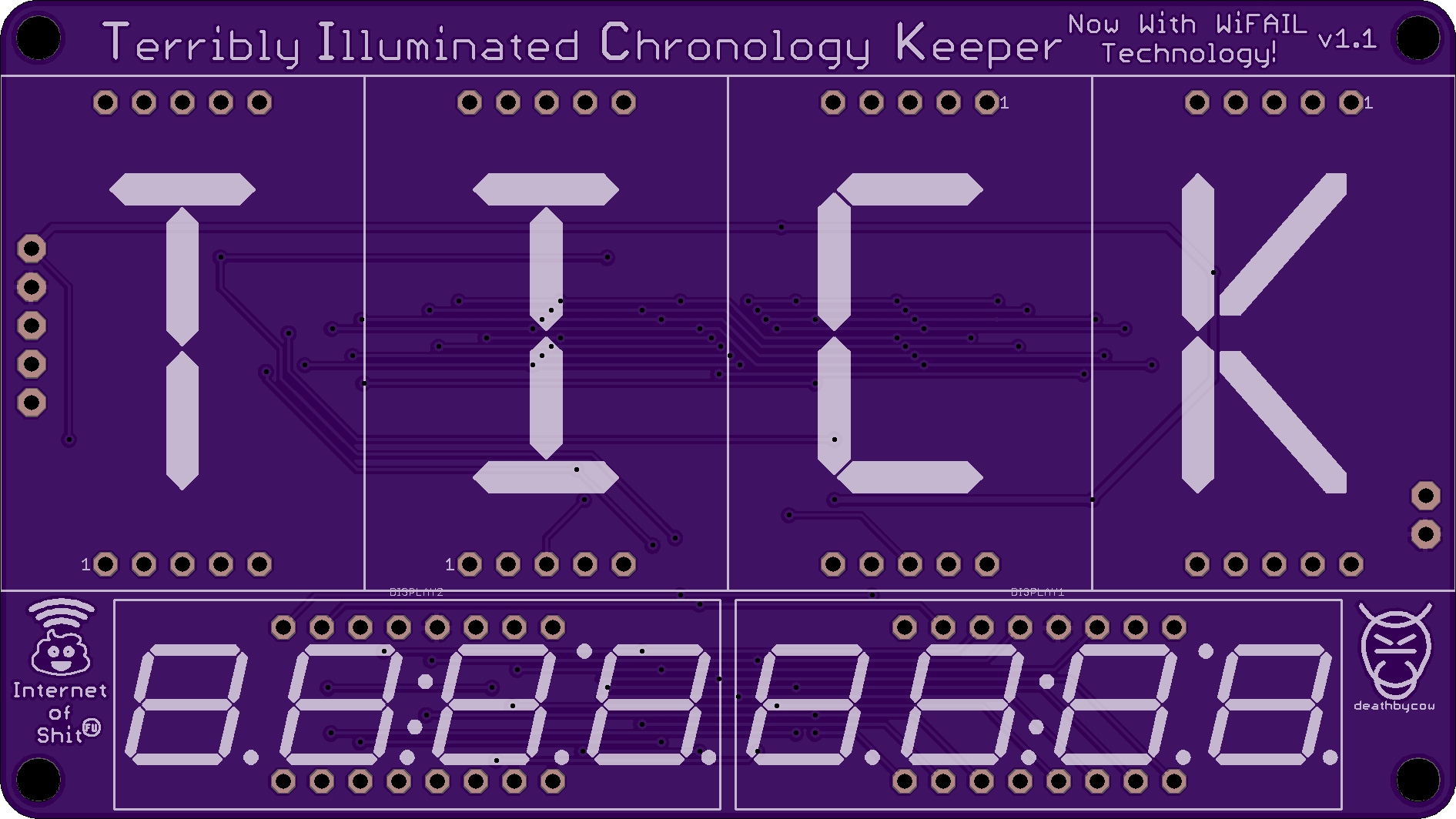

2 layer board of 3.78x2.13 inches (96.01x54.03 mm).
Shared on July 24th, 2016 02:40.

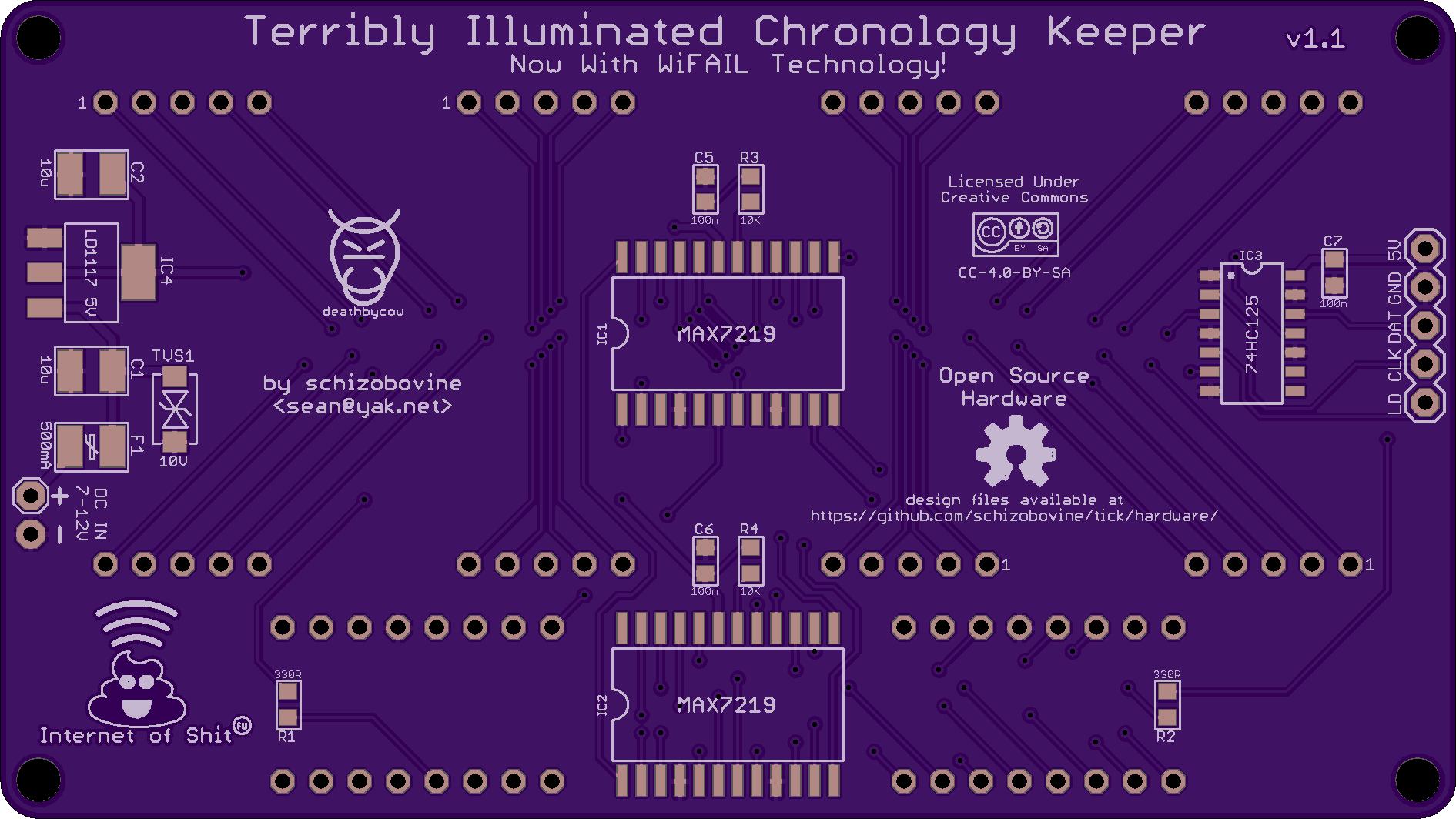

Display driver board for a esp8266 clone or the like, with 5V linear regulator onboard, 74HCT125 buffer, and a 5 pin, 0.1" header out to the microcontroller thingy. Also, a friendly smiling U+1F4A9 PILE OF POO.

https://github.com/schizobovine/tick/hardware/
