Aquarium Control v2.5

by

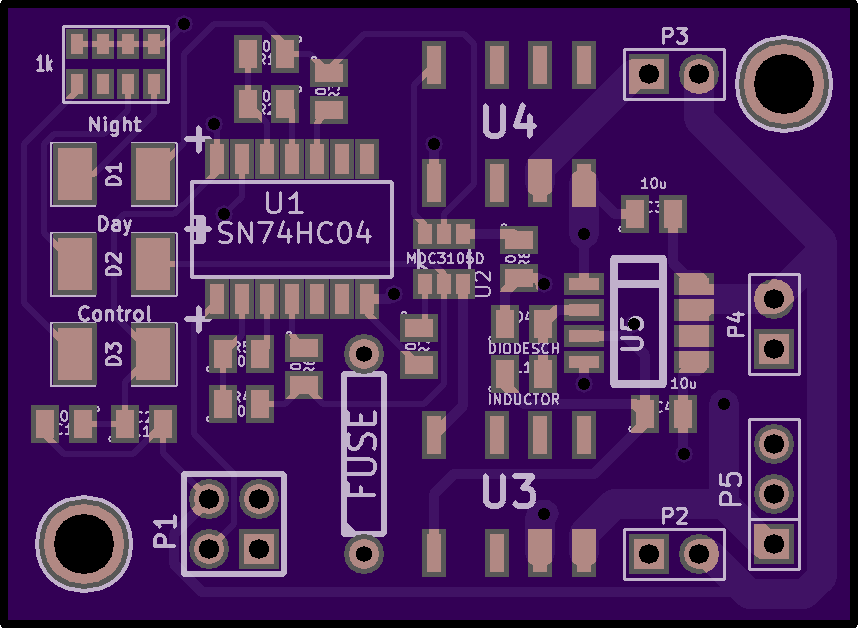

Top

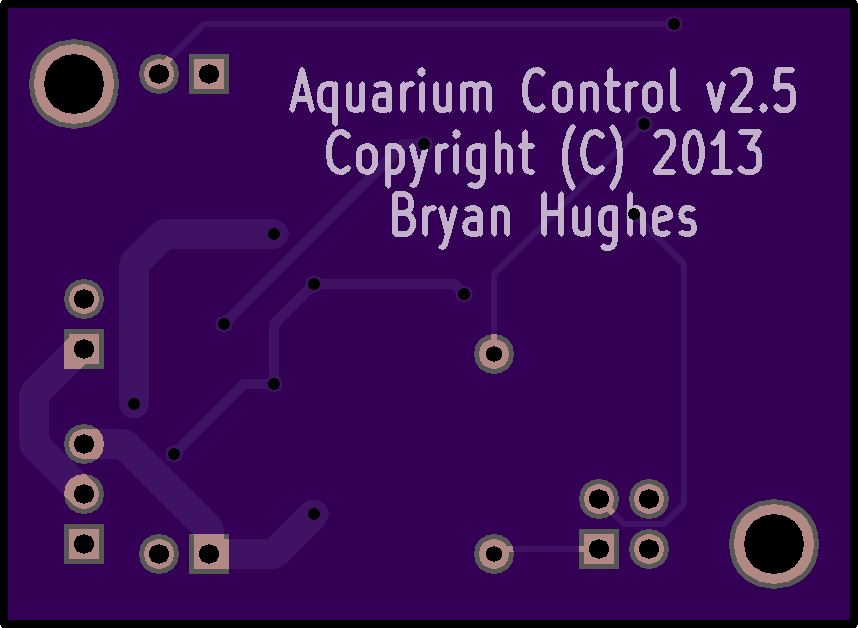

Bottom

2 layer board of 1.72x1.25 inches (43.59x31.88 mm).
Shared on August 3rd, 2014 21:40.

Originally intended to control the lights of an aquarium, this board takes two 3.3V inverted logic inputs and drives two relays for powering up to 1.5A loads (give or take). The board requires 10VDC to 40VDC power to power the relay logic. For more details, read my blog post about the hardware setup.
