555 Based PWM Controller

by Electricfihs.

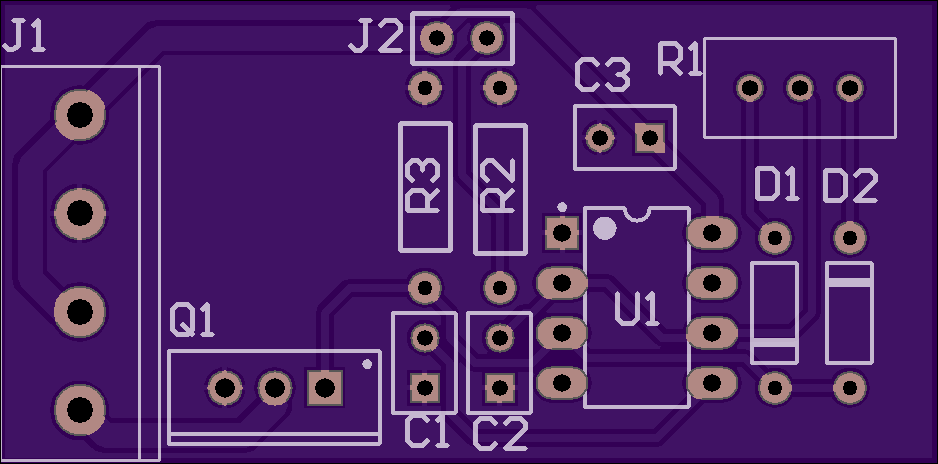

Top

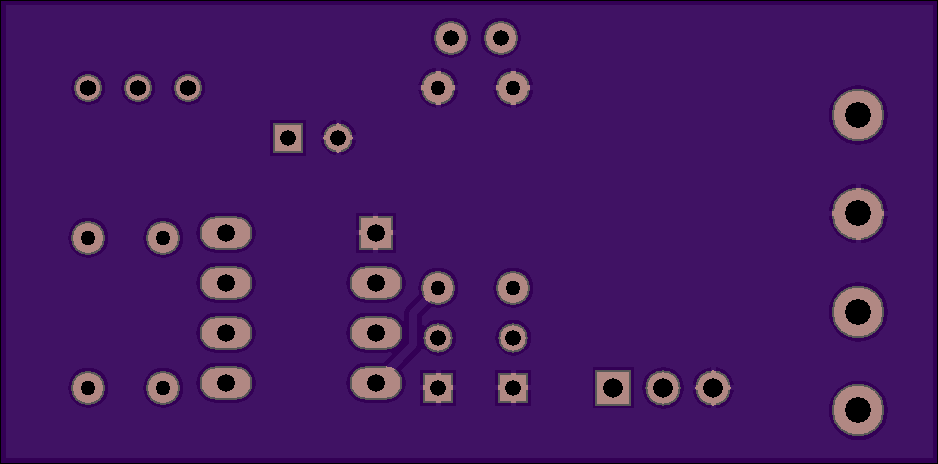

Bottom

2 layer board of 1.88x0.93 inches (47.65x23.49 mm).
Shared on February 24th, 2017 00:30.

A Simple 555 Based PWM Controller kit. Completely though hole.
