Arduino Spectrum Analyzer Shield
by
siahman.
2
layer board of
2.12x2.37
inches
(53.77x60.10
mm).
Shared on
February 2nd, 2014 02:48.

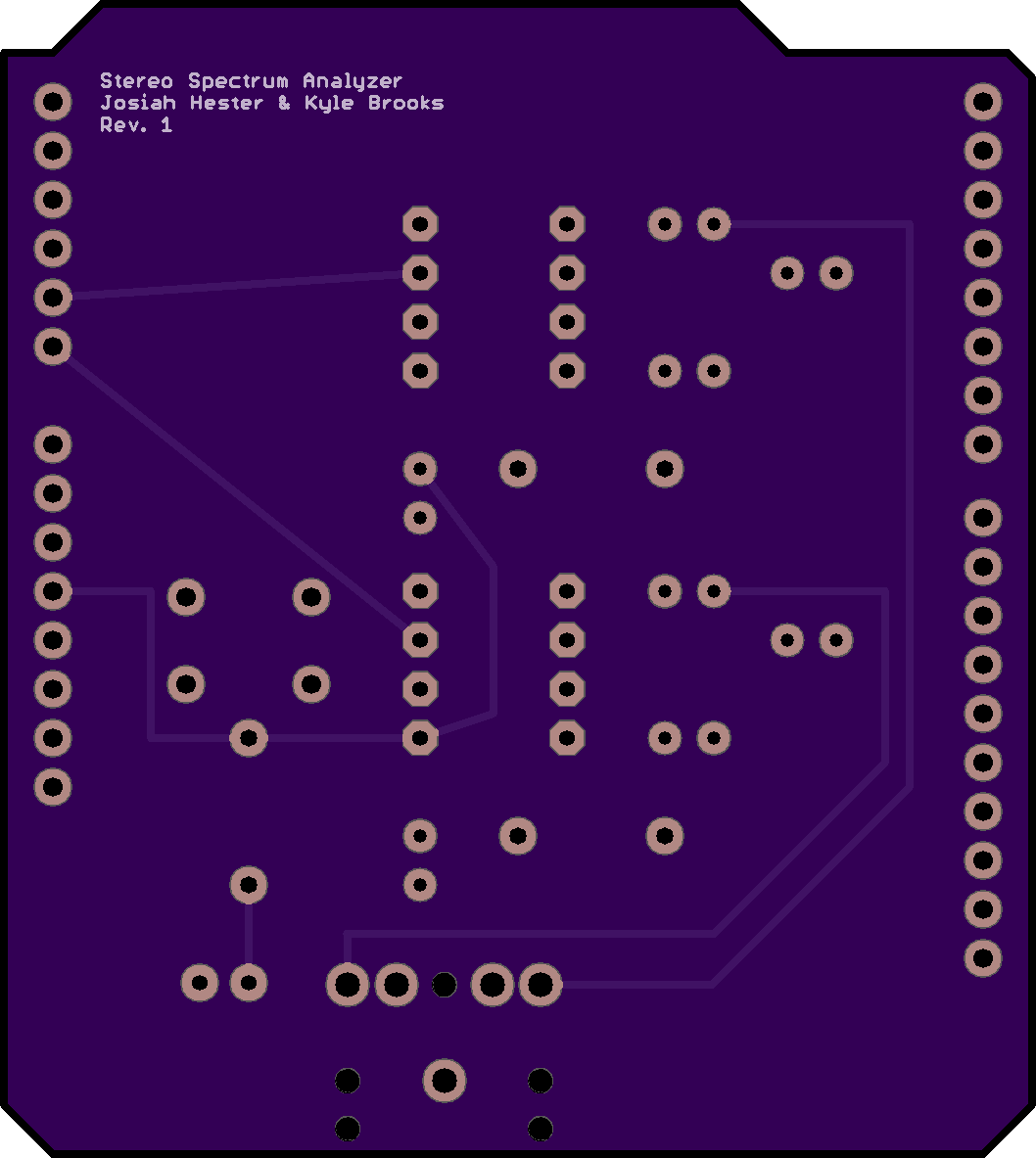

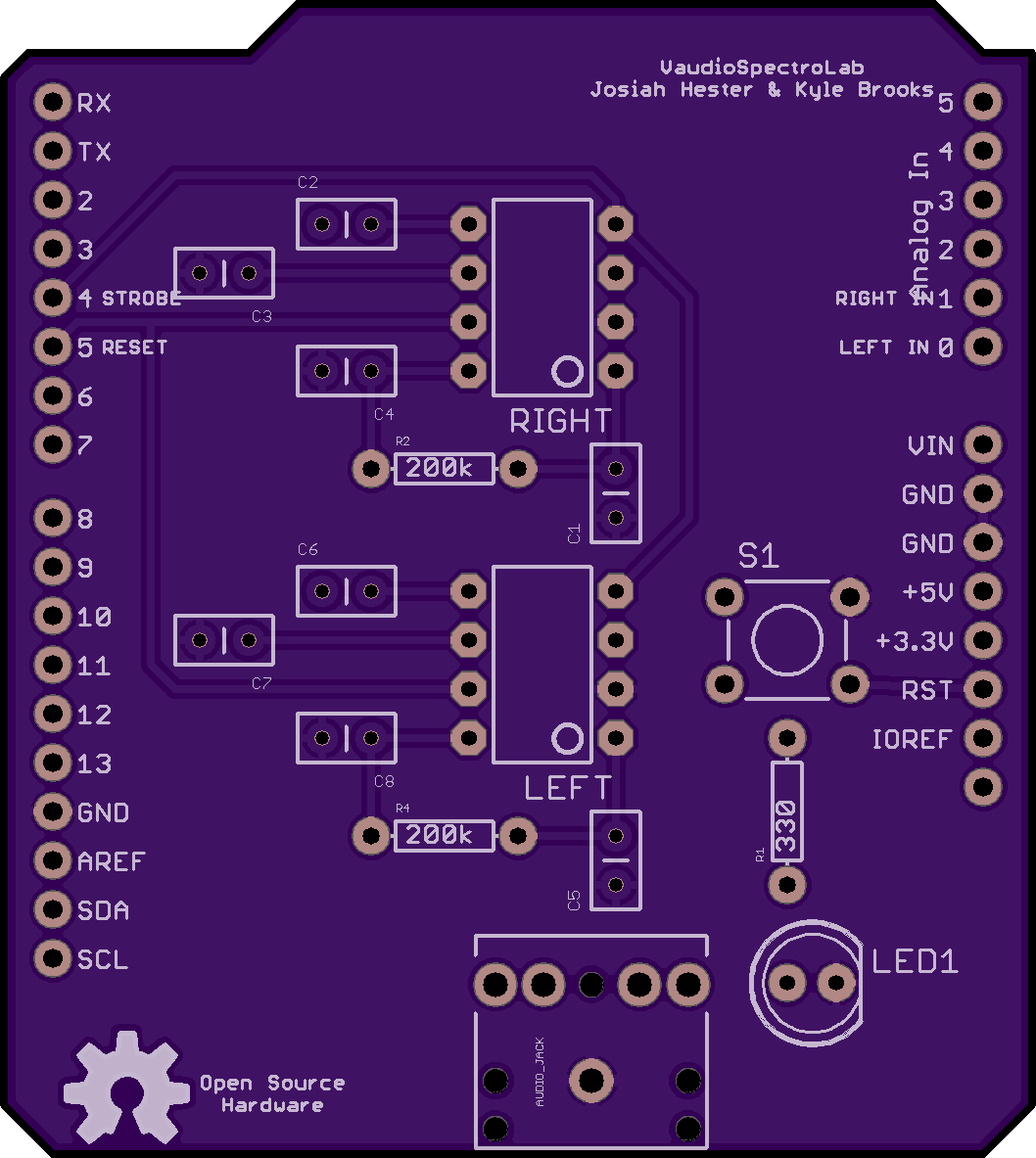

Arduino Shield Graphic Equalizer Display Filter Breakout - MSGEQ7
This simple board breaks out the MSEQ7 according to the application notes, and fits nicely on top of an arduino Currently this is for through hole parts for ease of soldering, look for the SMD version soon.
Bill Of Materials:
- 33pF PTH Ceramic Capacitor x2
- 0.1uF PTH Ceramic Capacitor x4
- 1000pF PTH Ceramic Capacitor x2
- 200kOhm PTH Resistor x2
- 5mm LED x1
- 330 Ohm PTH Resistor x1
- Push button x1
- Arduino shield headers x1
- Stereo Audio Jack 3.5mm x1
- MSEQ7 IC x2
