Nixie Tube Clock - Bug Free

by doayee.
Top
Bottom

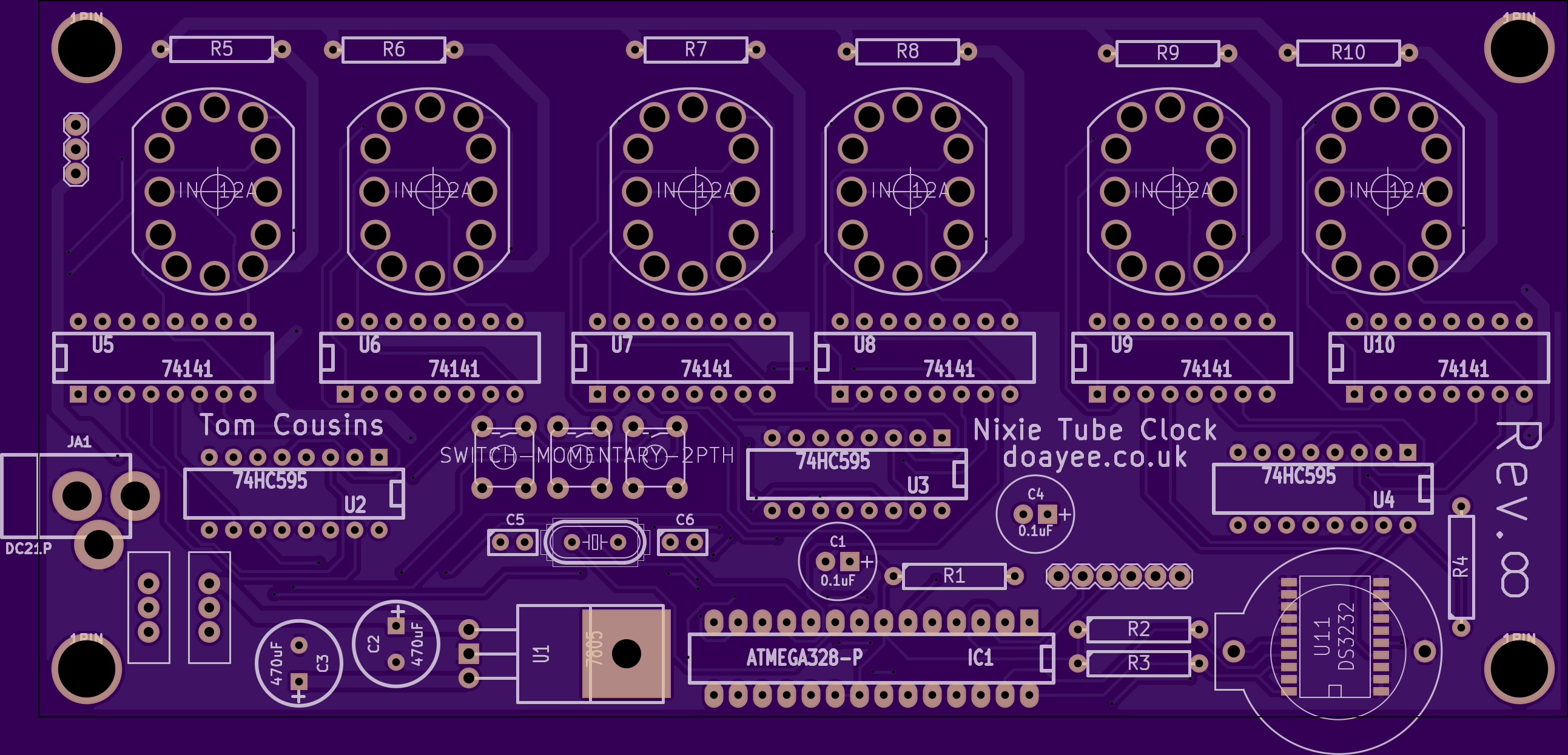

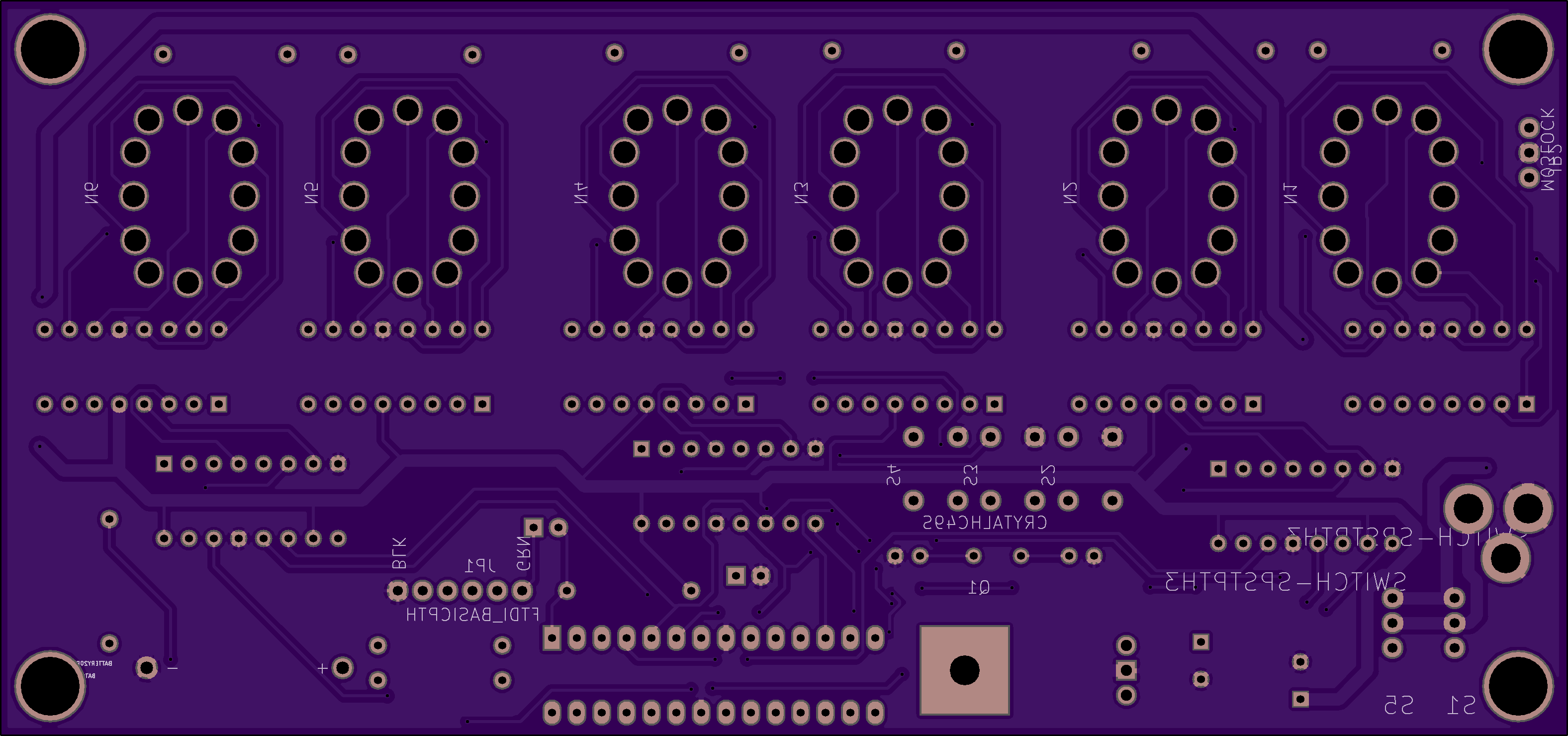

2 layer board of 6.31x2.96 inches (160.17x75.16 mm).
Shared on August 3rd, 2015 16:56.

The PCB for the Nixie Tube Clock I made, uses IN-12B nixie tubes, 6 74141 nixie drivers, 3 74HC595 shift registers, 1 ATMega328P and a DS3232 to drive the nixies. Blog post about it here . Youtube video about it here.
