9 LED Board

by schizobovine.

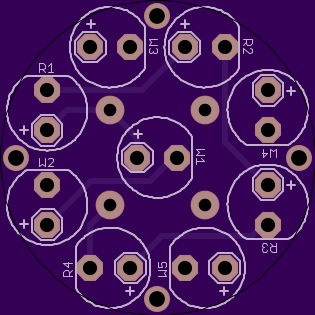

Top

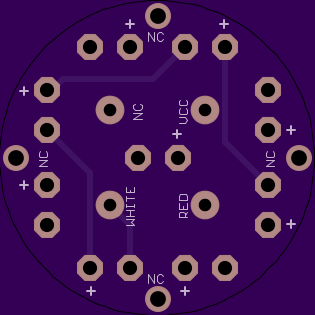

Bottom

2 layer board of 0.79x0.79 inches (20.02x20.02 mm).
Shared on November 22nd, 2014 20:41.

For 5mm PTH LEDs, split into two circuits (5 for the white channel, 4 for the red channel).
