AK8963N Digital Compass Breakout Board

by Kelbit.

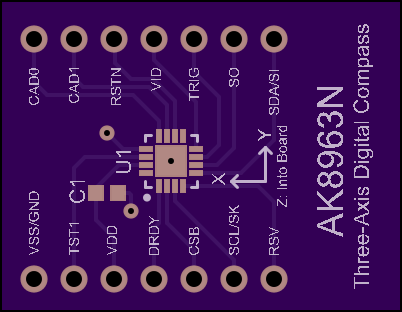

Top
Bottom

2 layer board of 1.01x0.78 inches (25.55x19.84 mm).
Shared on October 5th, 2014 20:26.

A breakout board for the AK8963N three-axis digital compass. Uses 100 mil headers with 600 mil spacing between the rows, so you can plug it right into a breadboard. Further documentation.
