Ardweeny clone v2.0

by KO4XL.
Top

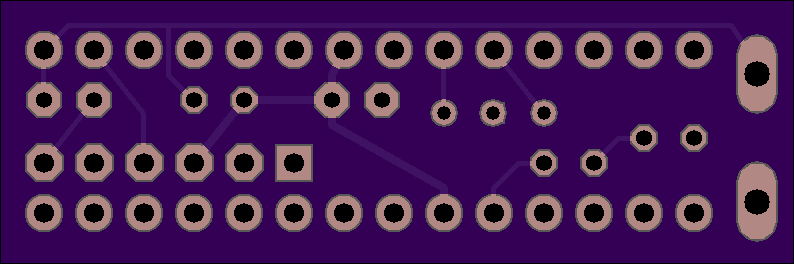

Bottom

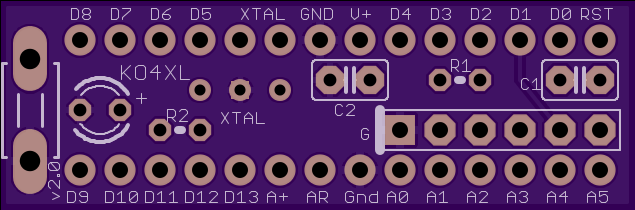

2 layer board of 1.59x0.53 inches (40.34x13.34 mm).
Shared on September 21st, 2014 03:52.

Bare bones Arduino that piggybacks right onto the ATMega328P chip. Includes reset button, FTDI connector and pin 13 LED. This rev has DIP pins set .05" wider than standard to allow for width of pins.
