Aquarium Led Driver

by

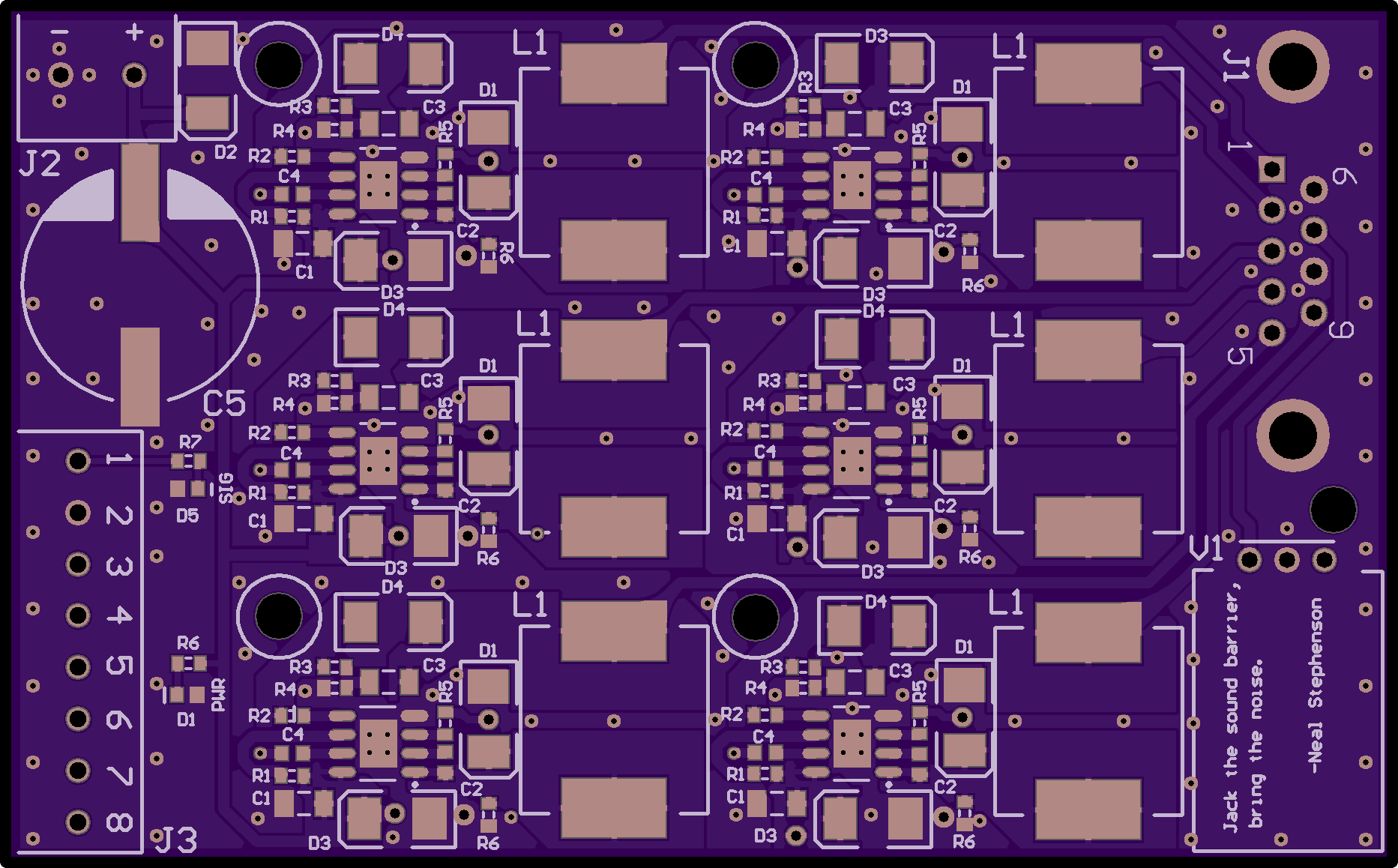

Top

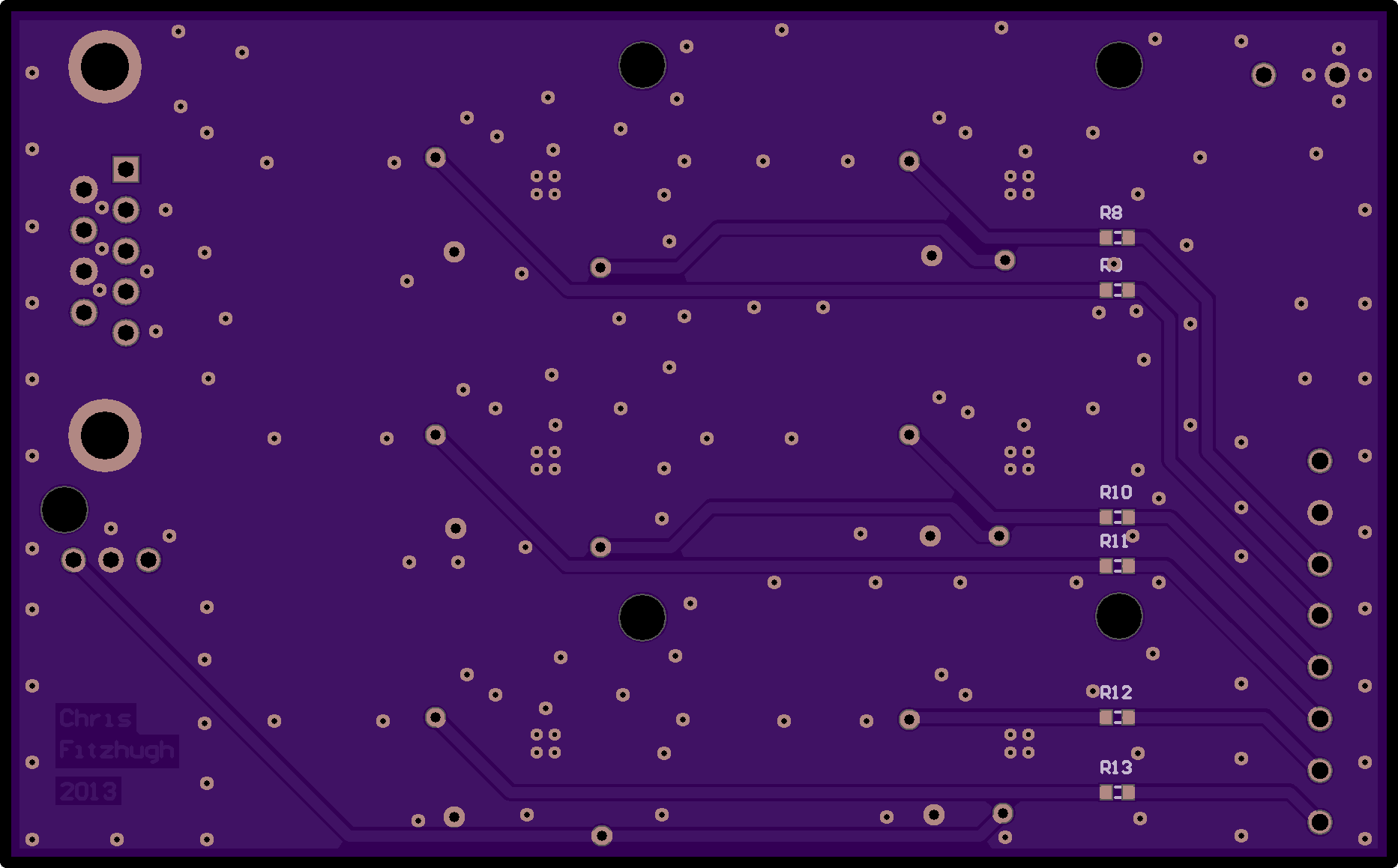

Bottom

2 layer board of 3.73x2.32 inches (94.77x58.80 mm).
Shared on June 7th, 2014 11:01.

A LED driver I designed for custom aquarium reef lighting. VCC is 48V, LED dimming is controlled via PWM, outputs 6 channels of up to 1A current controlled driving and one12V rail for driving cooling fans on the LED assemblies..
