BreadBusXL v3

by KO4XL.

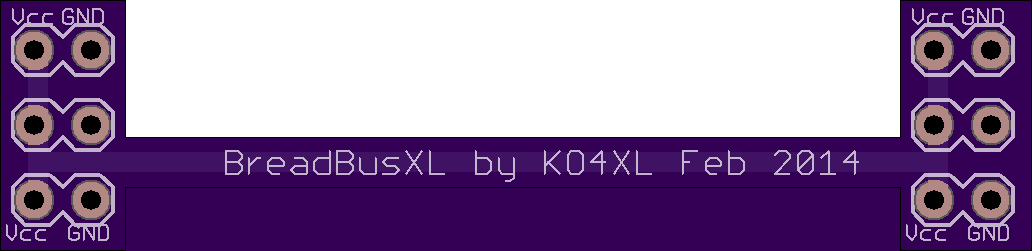

Top

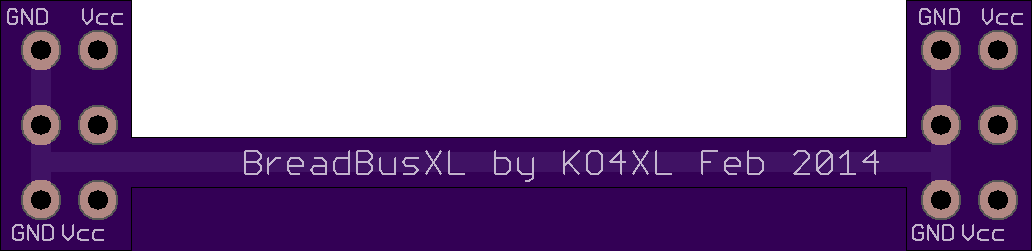

Bottom

2 layer board of 2.06x0.50 inches (52.37x12.70 mm).
Shared on February 25th, 2014 03:35.

Connects the left, right, upper and lower power buses of a full-length breadboard. Two extra sets of pads are provided for off-board connections to Vcc and Gnd. This latest version is H-shaped to minimize the number of blocked rows.
