ESP07 Multi

by CuriousTech.

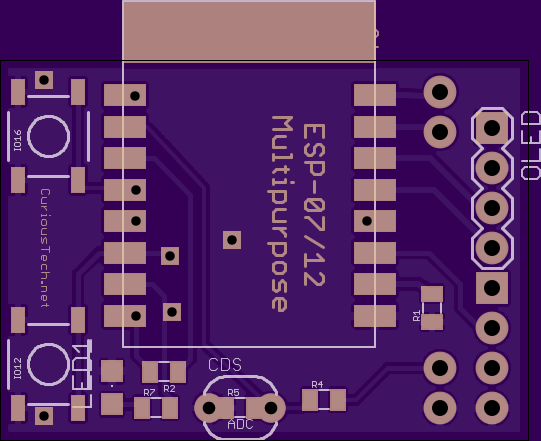

Top

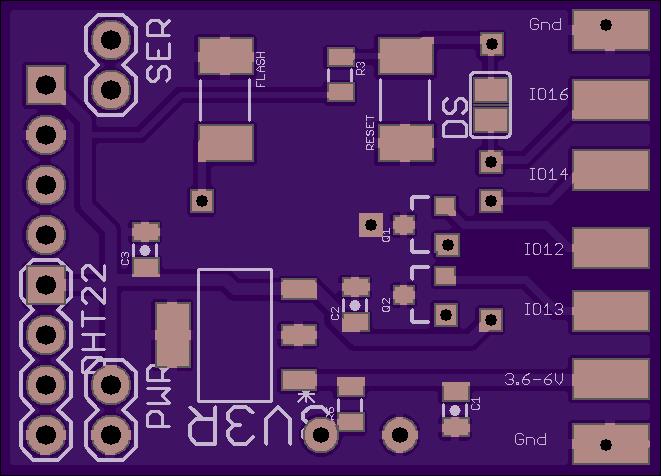

Bottom

2 layer board of 1.32x0.95 inches (33.53x24.13 mm).
Shared on July 8th, 2015 22:02.

ESP07/12 experimental board for I2C OLED, DHT22, etc. Some I/O are multiple choice. See schematic for details.
Eagle files and pics
