LED Driver V2

by OfMiceAndMachines.

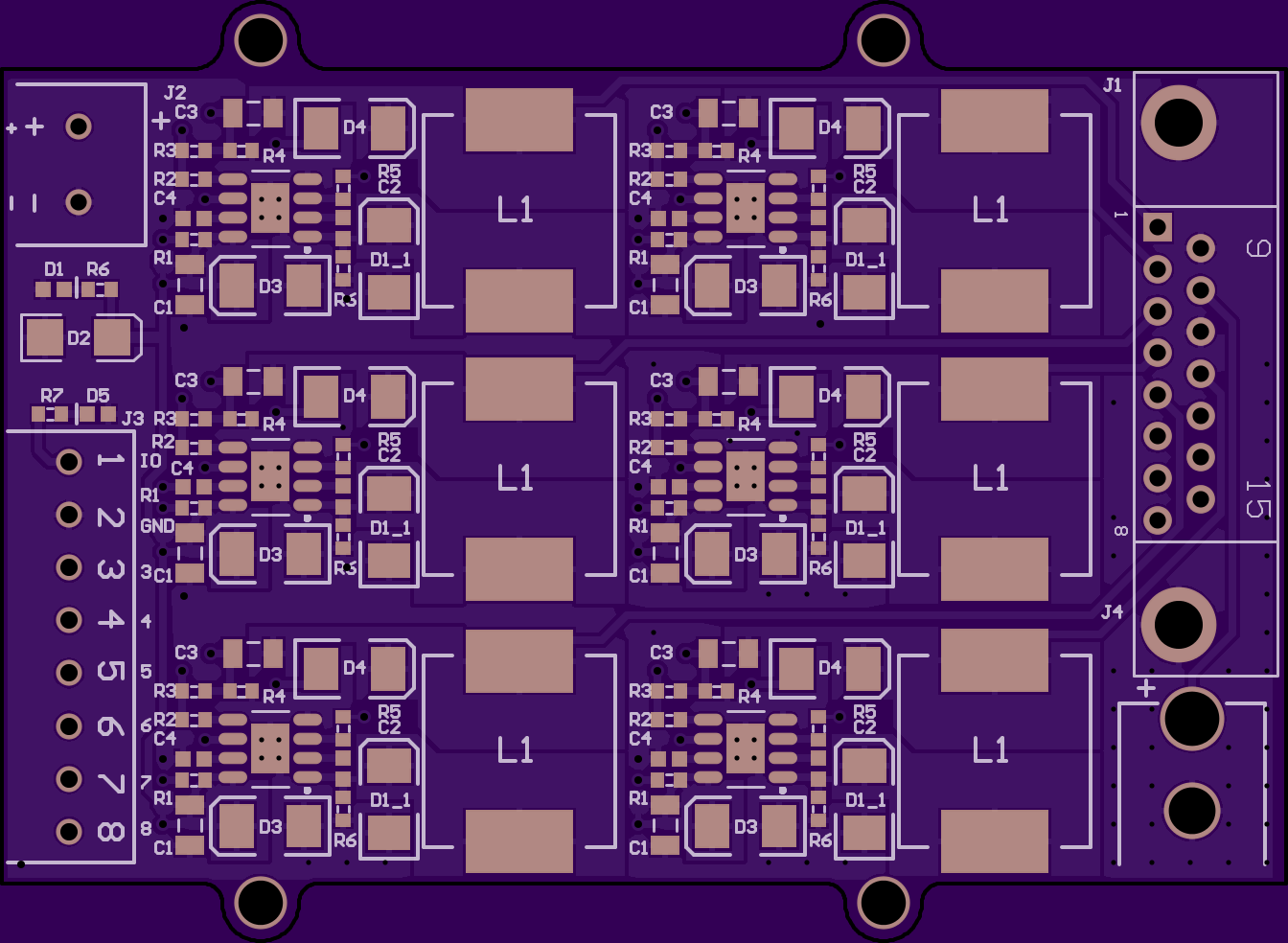

Top

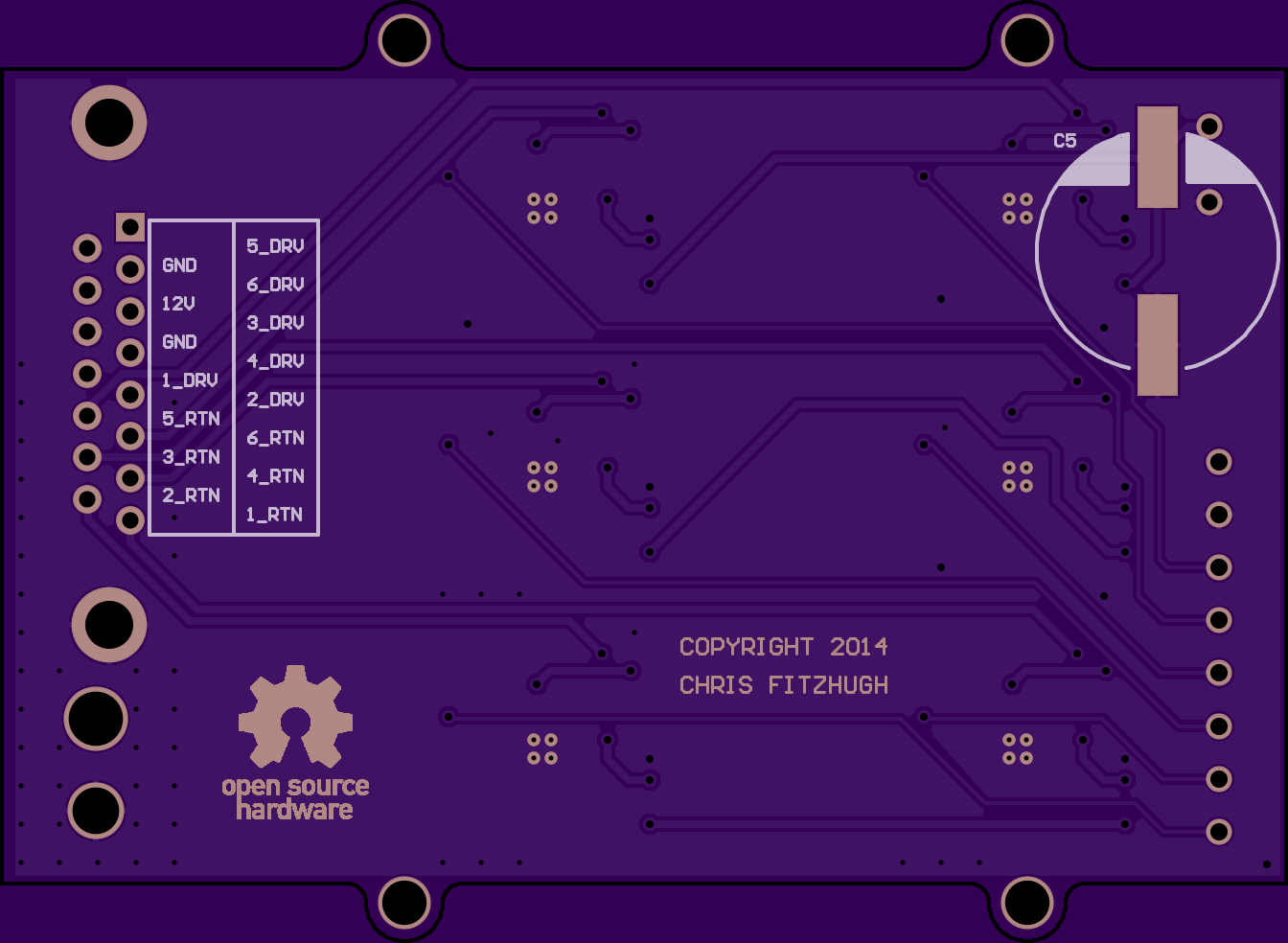

Bottom

2 layer board of 3.36x2.46 inches (85.37x62.48 mm).
Shared on August 10th, 2014 17:27.

Updated version of the LED driver to include offboard 12V power and proper power returns from the LEDs.
