7135 Based SRK Driver V1.1

by Mattaus.

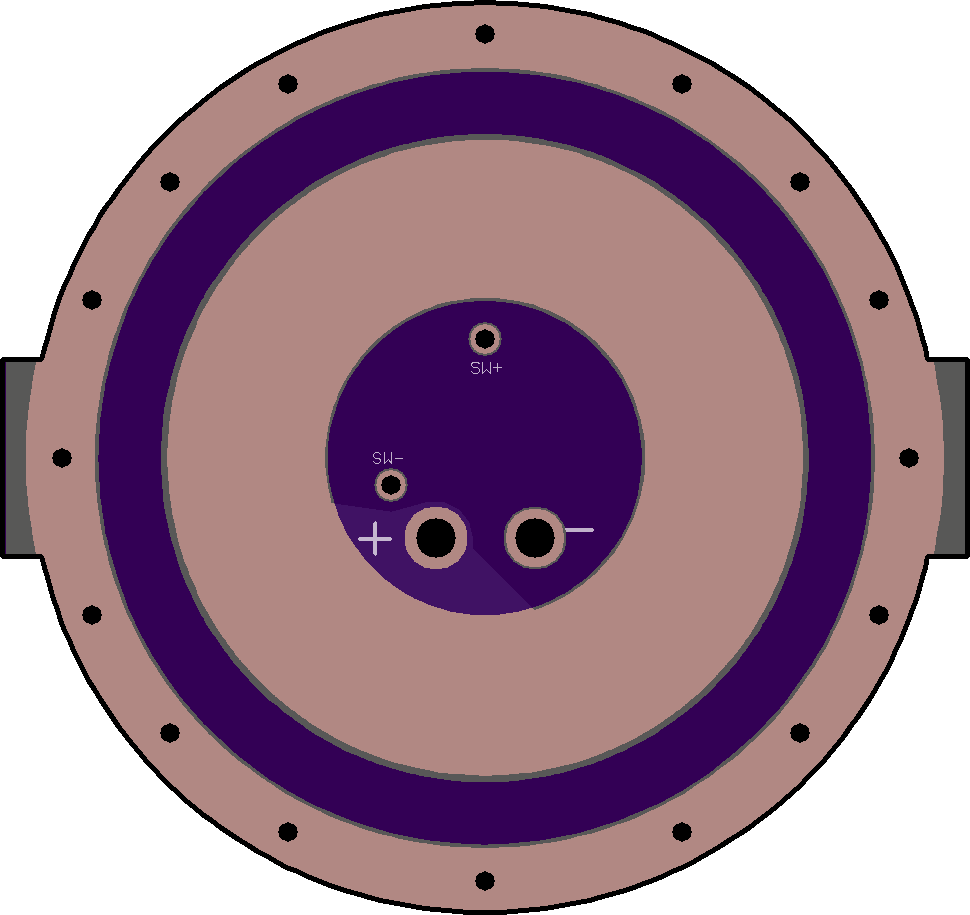

Top

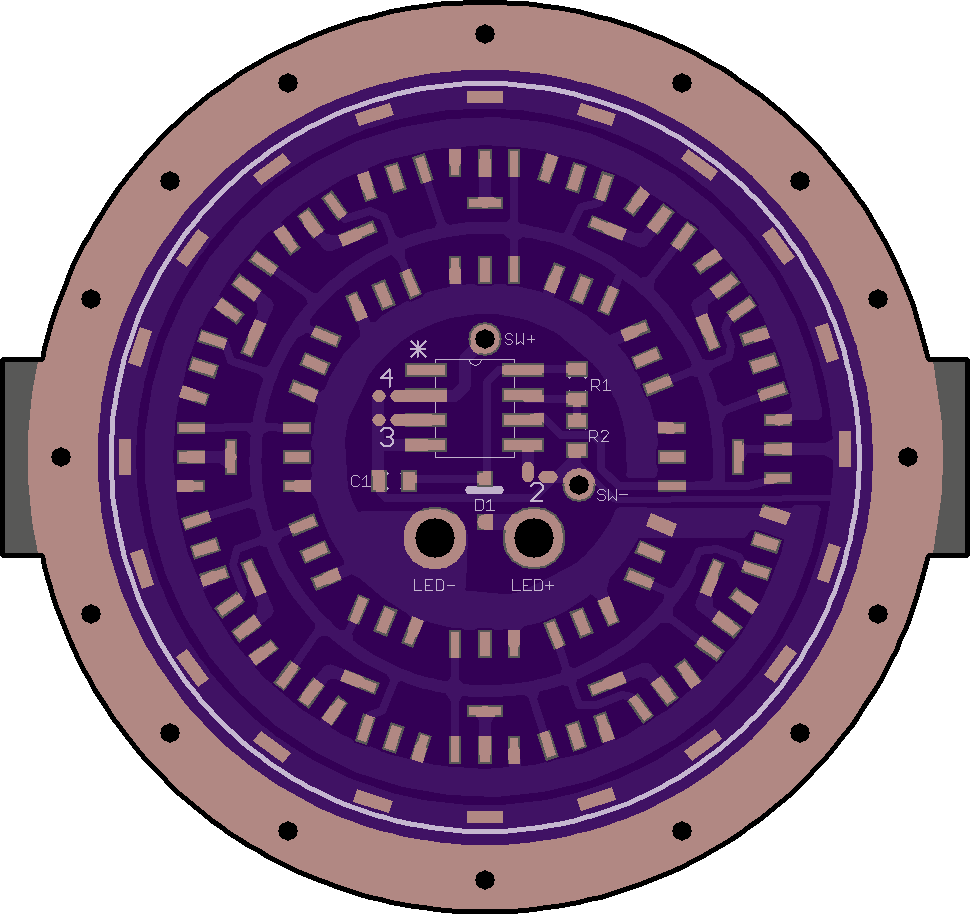

Bottom

2 layer board of 1.94x1.83 inches (49.28x46.48 mm).
Shared on March 18th, 2014 10:14.

32x AMC7135 Based Driver For Sky Ray King Flashlights.

  • D1: SOD-323
  • C1:10 uF
  • R1: 19.1K, 1%
  • R2: 4.7K, 1%
  • Processor: ATTINY13 or similar
  • LED connects to the + and – pads.
  • Star points 2,3 and 4 for using stock 105C firmware and mode selections.
