DS12887A replacement

by Switching-Power.

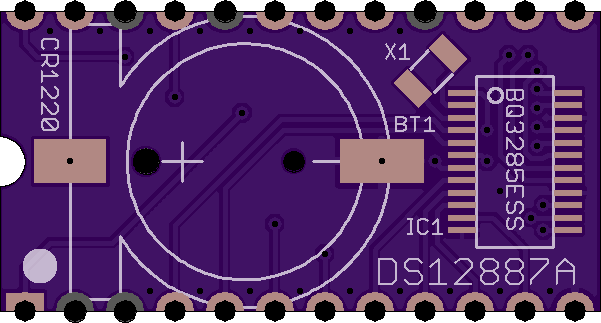

Top
Bottom

2 layer board of 1.20x0.64 inches (30.48x16.36 mm).
Shared on March 10th, 2017 22:09.

Discreet DS12887A RTC replacement

  • BT1 - S8411-45R CR1220 Holder
  • IC1 - BQ3285ESS
  • X1 - CM7V-T1A 32.768kHz 7pF
  • PCB - 0.8mm thickness
