Sunfire x4200 Power Distribution board breakout

by DCorwin822.

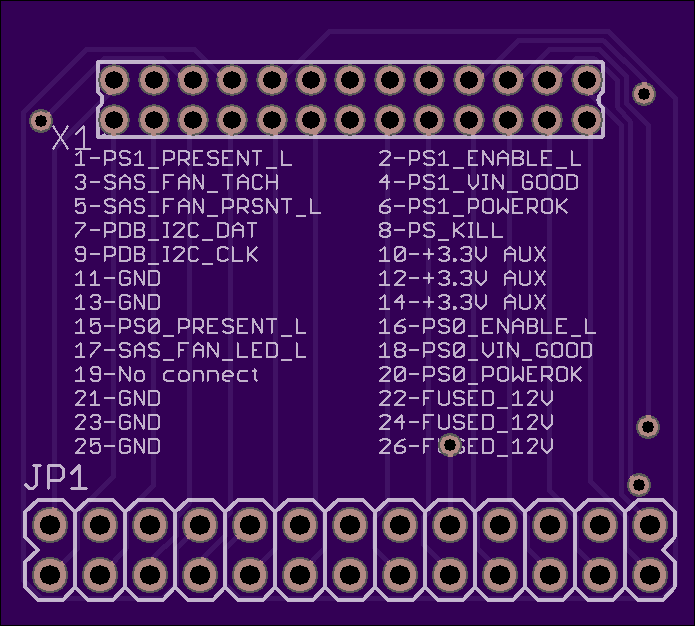

Top

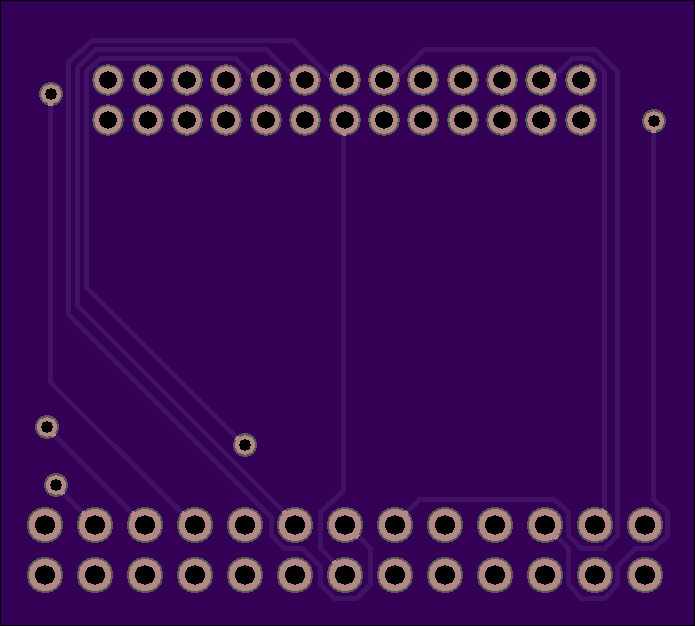

Bottom

2 layer board of 1.39x1.25 inches (35.26x31.75 mm).
Shared on November 22nd, 2016 16:25.

Breakout board to .1" headers. Uses 2x13 2mm pitch header on the board.
