RapidShark Motor Lulz

by schizobovine.

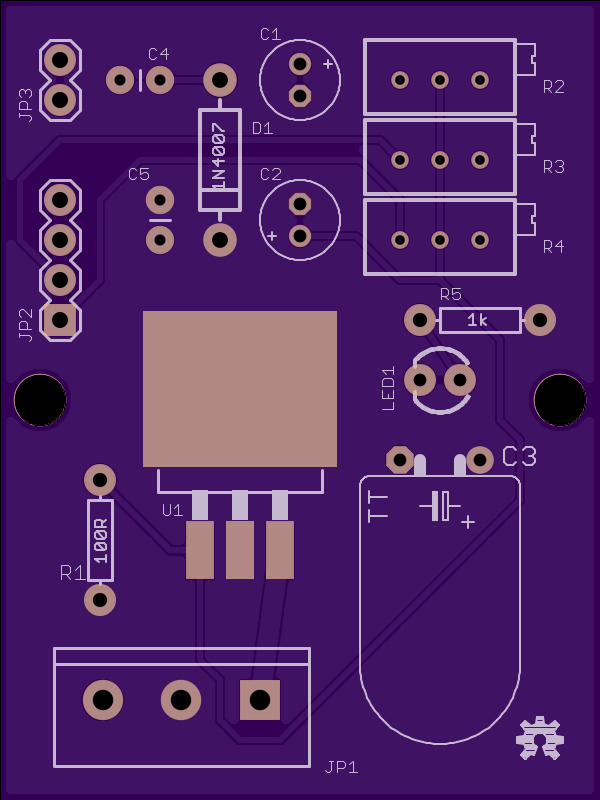

Top

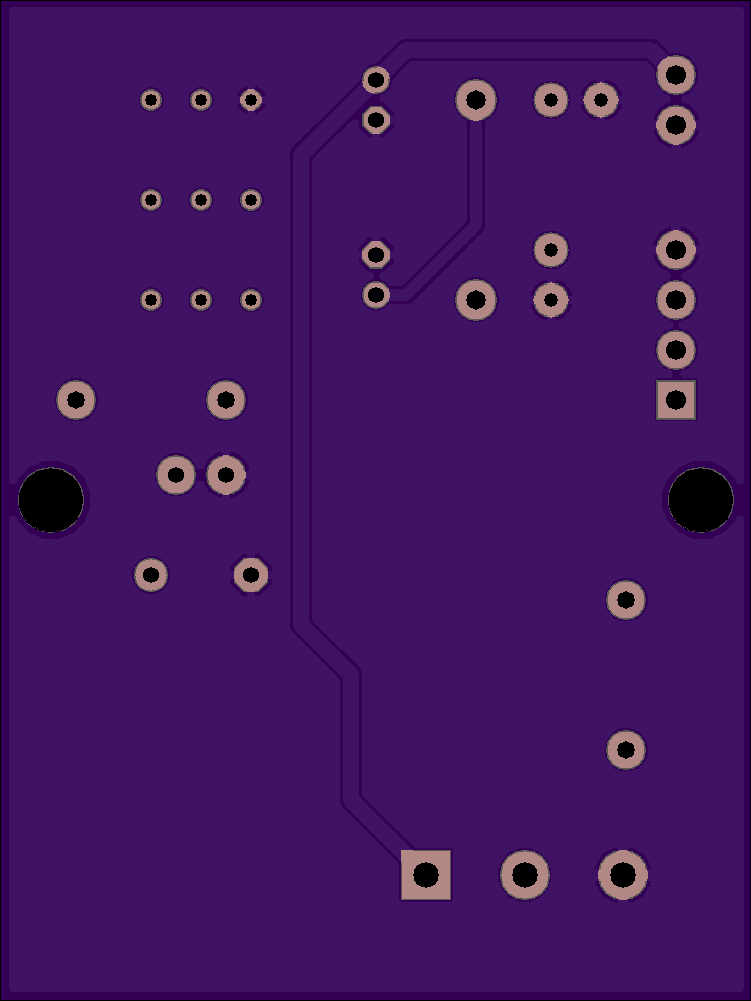

Bottom

2 layer board of 1.50x2.00 inches (38.13x50.80 mm).
Shared on July 13th, 2014 20:57.

Hilariously bad linear voltage regulator to control a Mabuchi 130 DC motor, using a D2PAK LM1084 or LM1085 regulator. Seriously, this is such a terrible idea.
