Headset Breakout

by fossum.

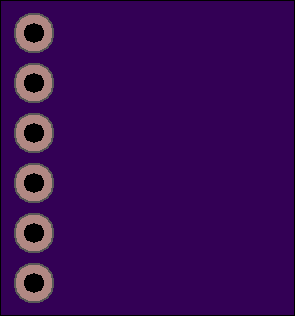

Top

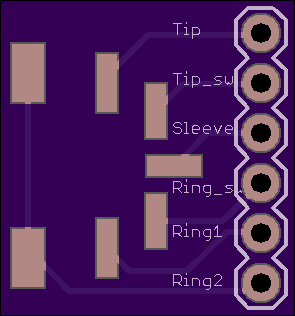

Bottom

2 layer board of 0.59x0.63 inches (14.94x16.00 mm).
Shared on June 2nd, 2016 22:56.

Breakout board for a full featured 2.5mm TRRS headset. You don’t need all the pins, but they are there just in case.

I made this with a SJ1-4253x from Digikey. You may need to clip the guide posts on the bottom of the part, but other than that it fits fine.
