4 xAA carrier - bottom
by
Helios-.
2
layer board of
1.35x1.35
inches
(34.24x34.24
mm).
Shared on
March 18th, 2014 08:25.

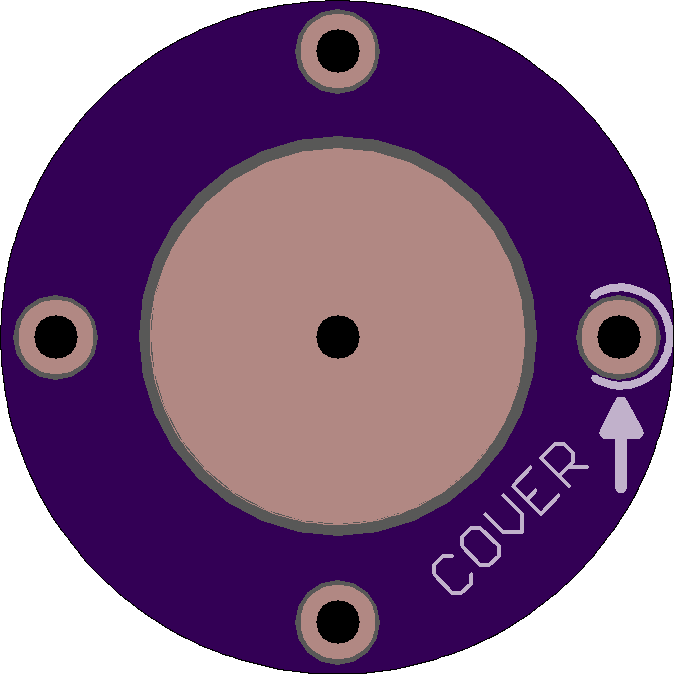

4 x AA serial battery carrier. Bottom plate. 12 awg solid core wire should fit through the vias. The bottom side of all vias really should be covered (kapton, packing tape, epoxy etc). At very least the via for the positive connection must be covered.
