WEMOS D1 sht30 alternative design
- You need to sign in or sign up before continuing.
WEMOS D1 sht30 alternative design
by
arjhun.
2
layer board of
1.06x1.48
inches
(26.82x37.62
mm).
Shared on
February 27th, 2017 23:30.

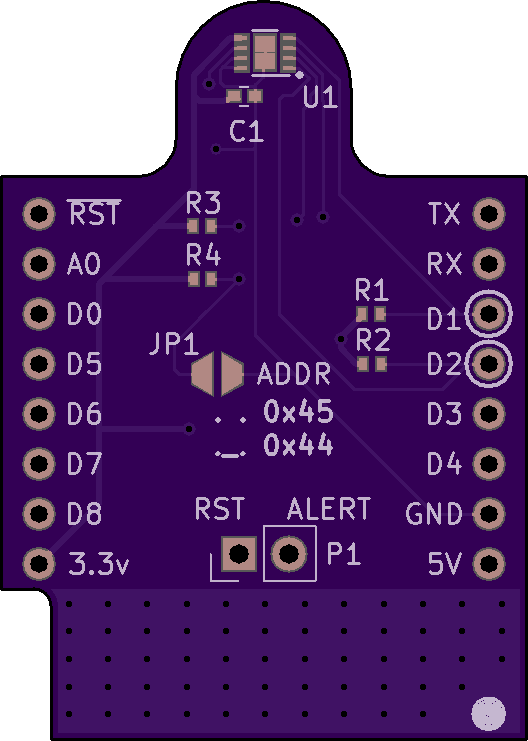

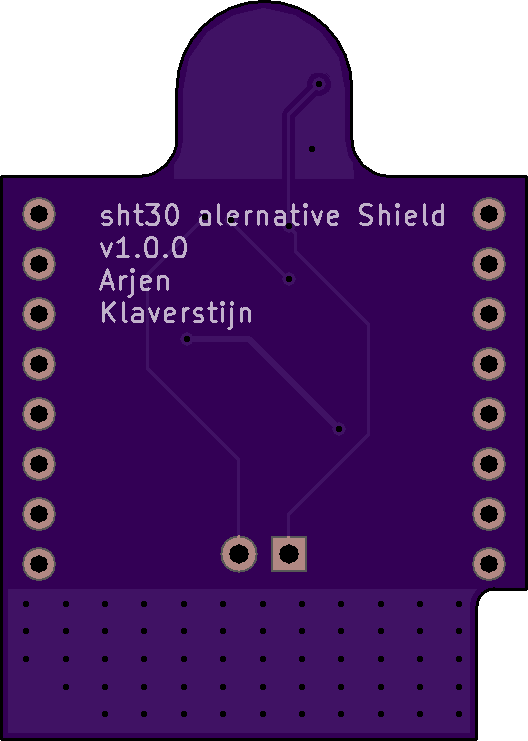

I redesigned the sht30 shield because of heat management issues… The sensor in the wemos design heats up because its above the regulator and esp module. I hope that moving the sensor and adding a thermal seperation between the bottom and top of the board helps.
