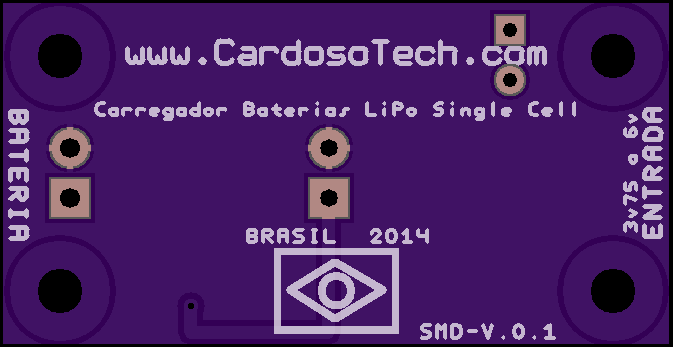

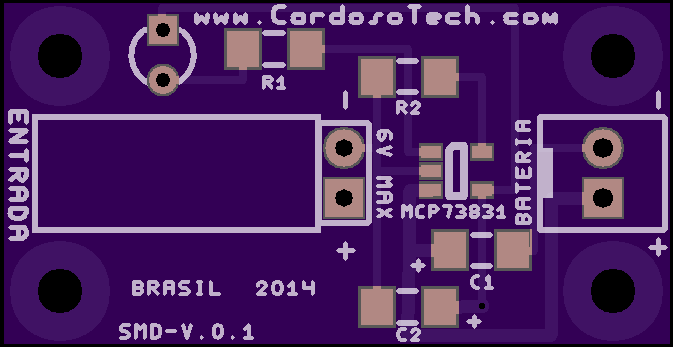

CardosoTech Modulo LiPo SMD 0.1 [Untested]
by
BlitzKriegBR.
2
layer board of
1.35x0.70
inches
(34.16x17.68
mm).
Shared on
March 2nd, 2014 05:33.
List of Materials:
C1, C2 = 4.7µF;
J1 = KF2510-2P;
J2 = Header Molex KK 2-pin;
LCMC = MCP73831;
LED = 3mm;
R1 = 470Ω;
R2 = 2KΩ;
R’s and C’s are: Chip 3216 EIA 1206
