rf_bridge.kicad_pcb

by buserror.
Top
Bottom

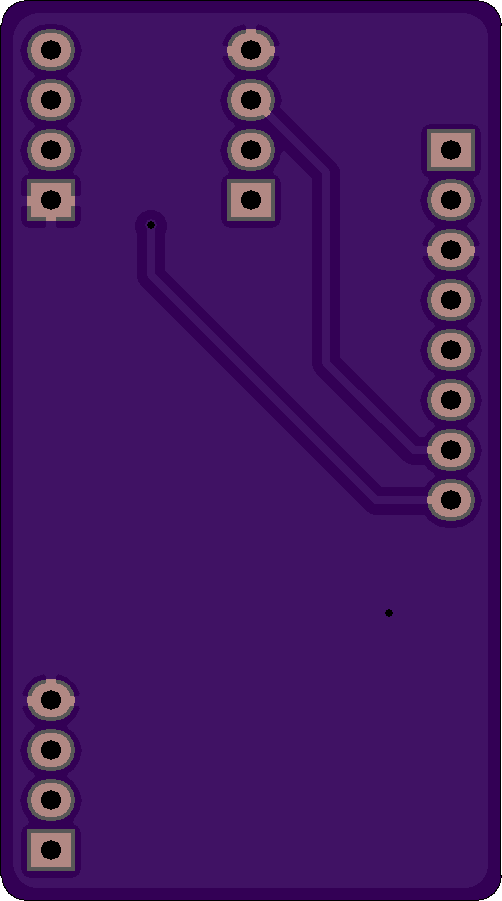

2 layer board of 1.00x1.80 inches (25.43x45.75 mm).
Shared on March 8th, 2017 21:41.

Board for my Serial bridge to RF 433Mhz transceiver. Uses an arduino nano, a cheap 433 RX + Tx module, and a NXP switch for the antenna. All the software bits are on my github. See https://github.com/buserror/rf_bridge
