Arduino Linbus Analyzer Rev A

by zapta.

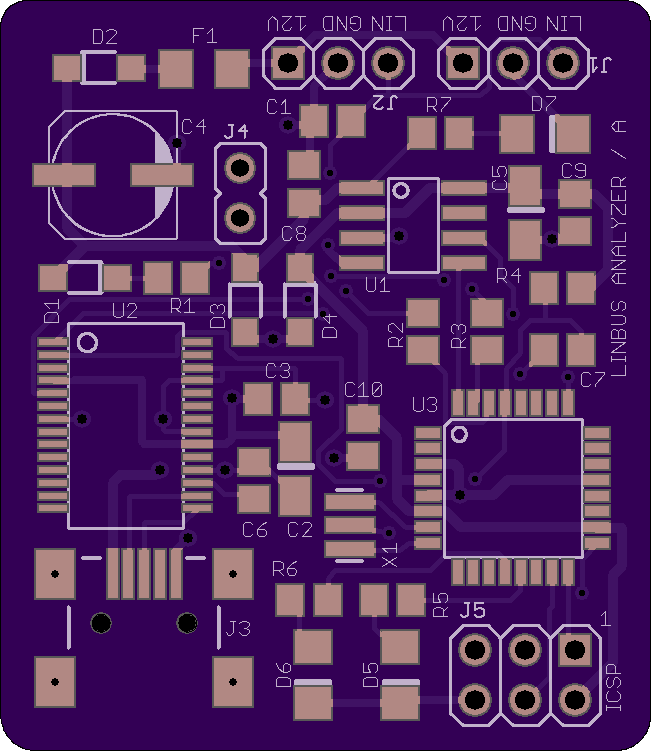

Top

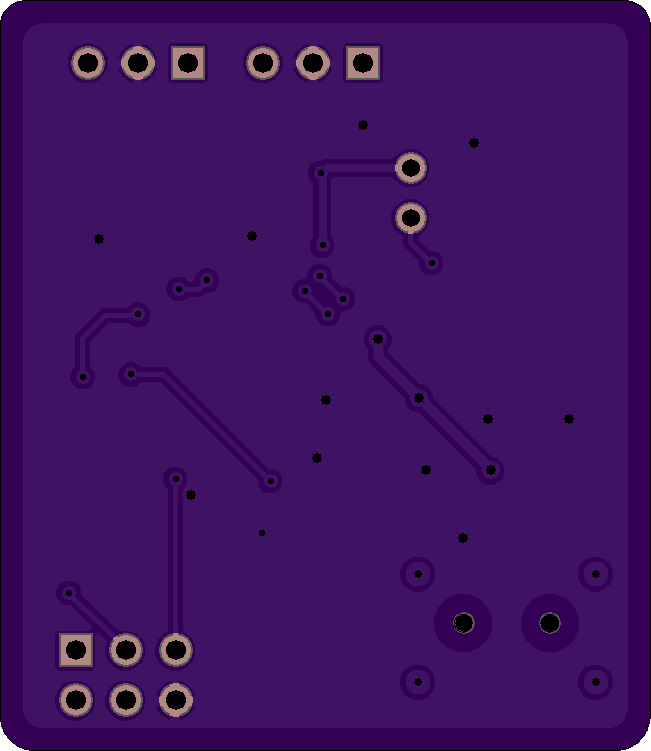

Bottom

2 layer board of 1.30x1.50 inches (33.02x38.13 mm).
Shared on March 3rd, 2014 15:46.

A LIN bus analyzer. Uploaded from commit 81a25e085c3aec4586f36defc80d8d323f7bc531

The board connects to a linbus on one end (GND, BUS, +12V) and to a computer USB on the other. It decodes the linbus frames and send them to the computer to a virtual serial port in human readable text/hex format.

All hardware source files can be found at https://github.com/zapta/linbus. Firmware can be easily modified using the Arduino IDE (the board emulates Arduino Mini Pro 5V).
