USBPICProg

by Freefall.

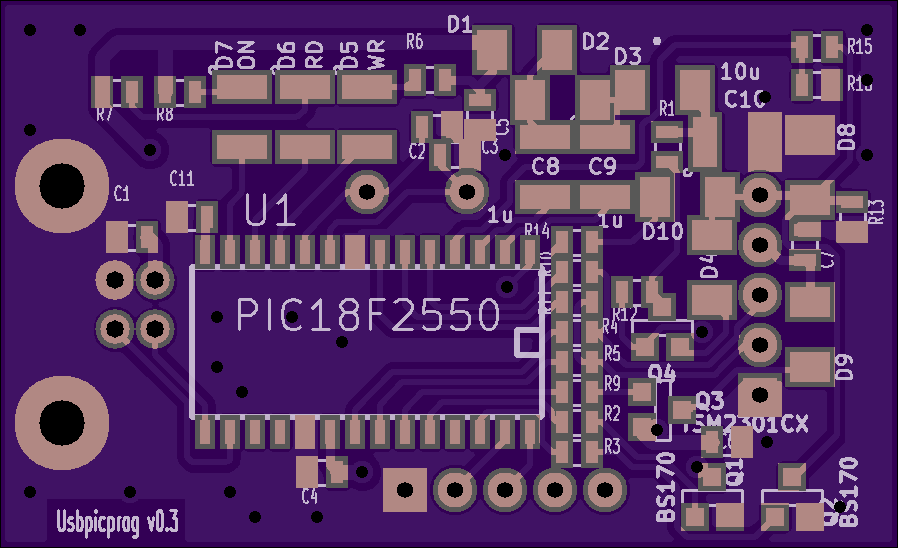

Top

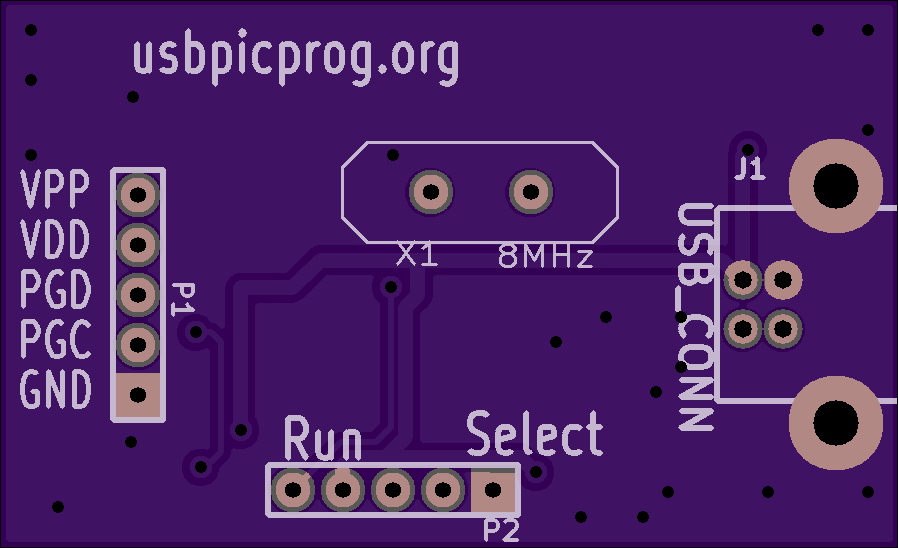

Bottom

2 layer board of 1.80x1.10 inches (45.64x27.86 mm).
Shared on February 28th, 2014 13:22.

SMD Version of the USBPIC Programmer from usbpicprog.org. I did NOT design this board. I just uploaded the Gerbers from the original site so I could order the board. You can get the schematics and material list from there as well.
