LED breakout board

by farsinotare.

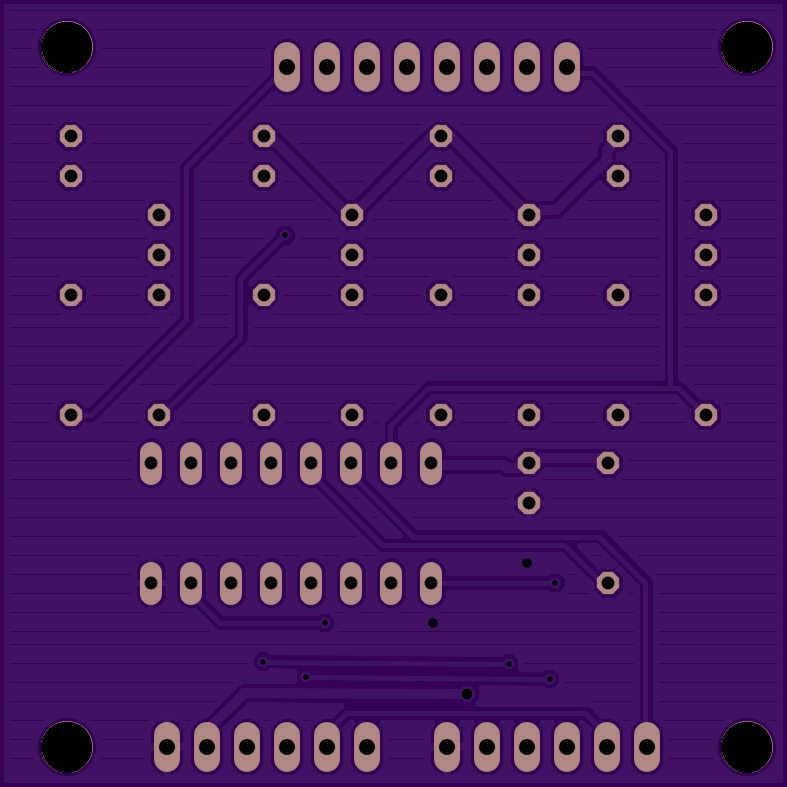

Top

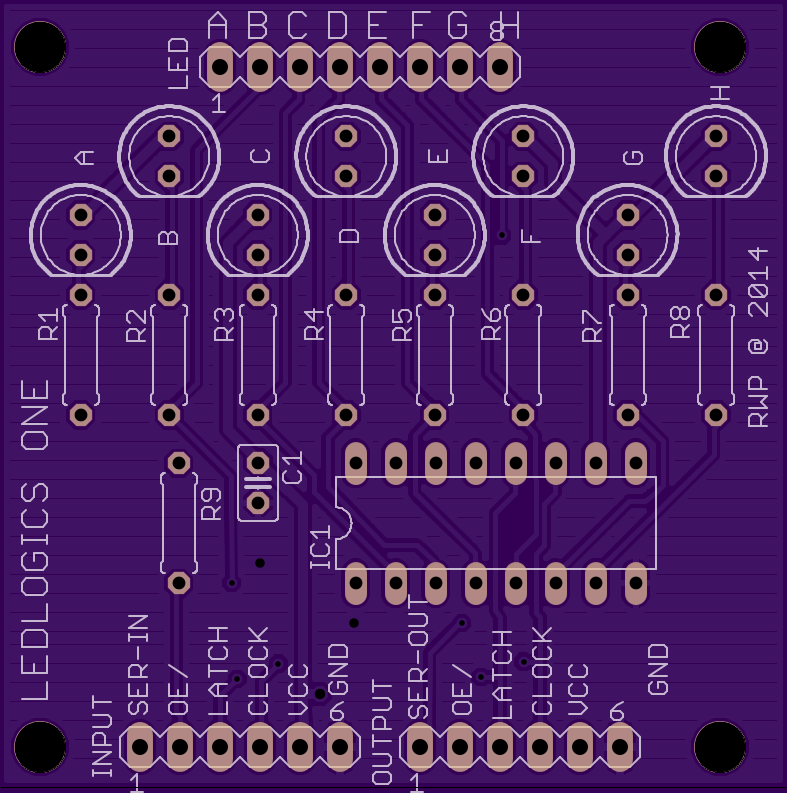

Bottom

2 layer board of 1.97x1.97 inches (50.01x50.01 mm).
Shared on August 15th, 2014 21:18.

Breakout board for 8 LEDs: Control LEDs with a 74hc595 or in parallel with a low side switch

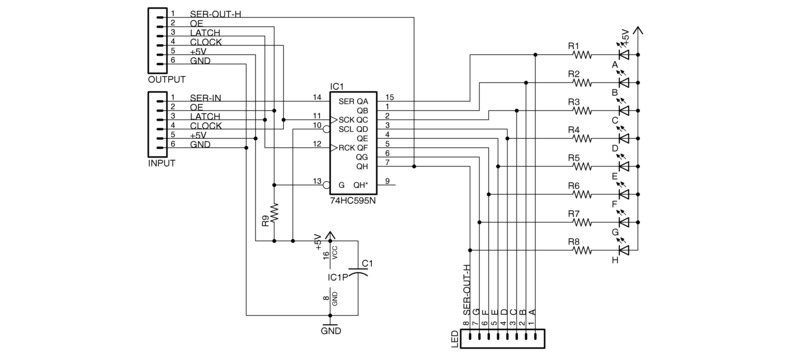

Find the schematic here
