Click Clack Mk 1.0

by schizobovine.

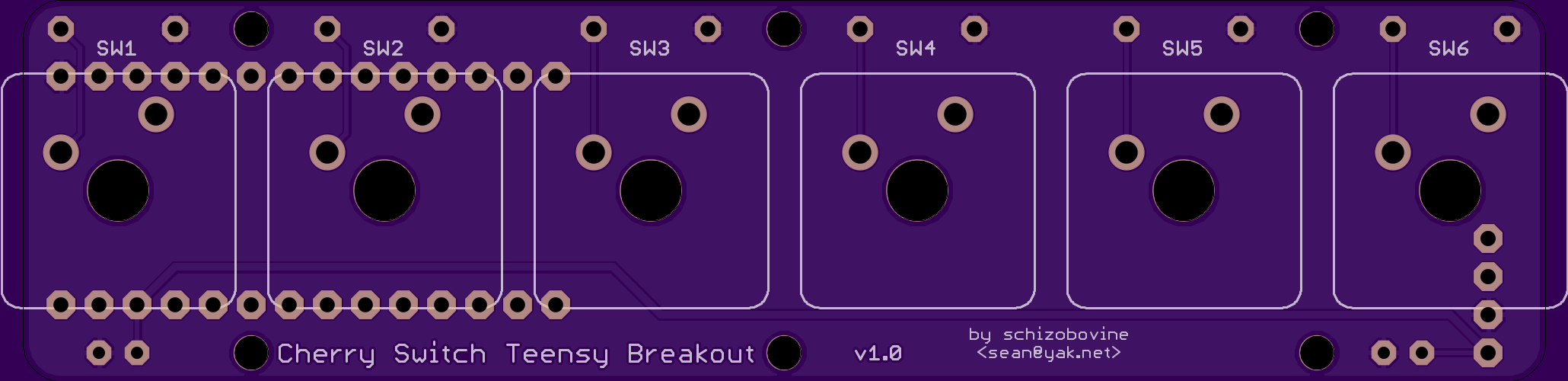

Top

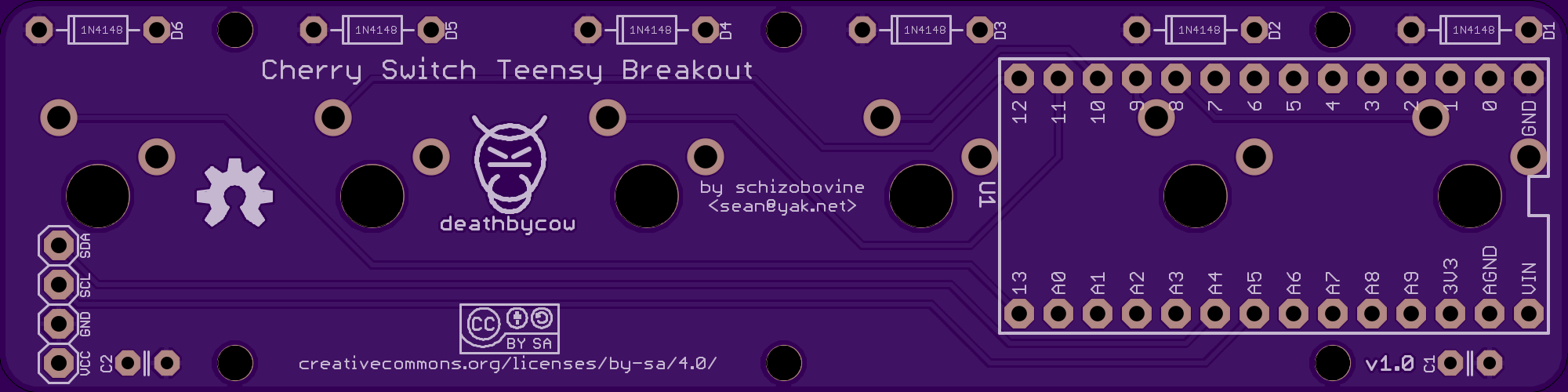

Bottom

2 layer board of 4.00x1.00 inches (101.60x25.43 mm).
Shared on October 9th, 2015 03:28.

Simple board to combine a Teensy and some Cherry MX switches as a macro key bar. Has i2c header for attaching display.

CC-4.0-BY-SA License, EAGLE design files on github:

https://github.com/schizobovine/clickclack
