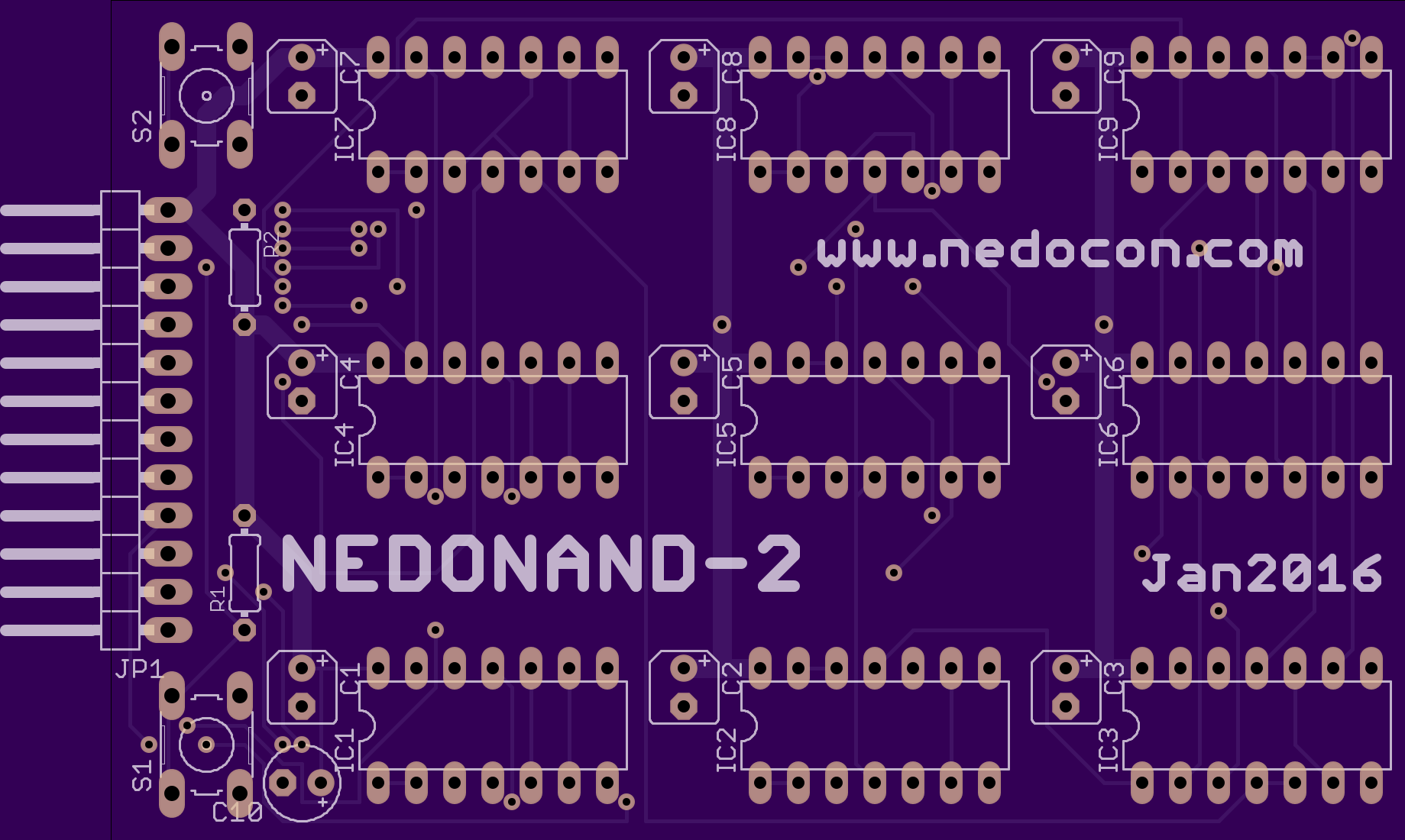

NEDONAND-2

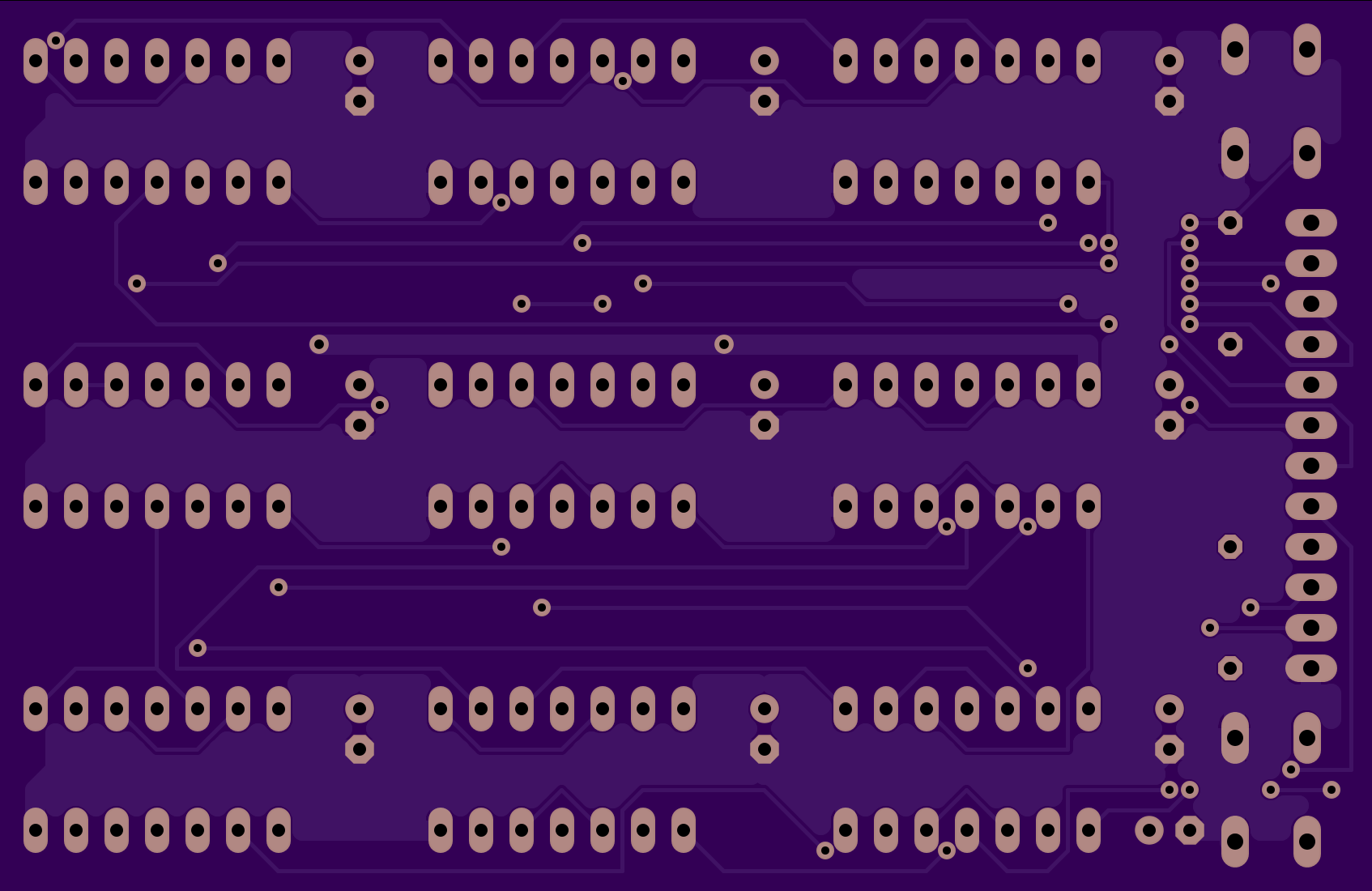

2 layer board of 3.39x2.20 inches (86.06x55.88 mm).
Shared on February 21st, 2016 04:25.

2nd board for NEDONAND project

It’s dual edge triggered D-flipflop with separate reset inputs. Pins description (from right to left):

1) GND - ground;
2) D1 - first data input;
3) ^C1 - first clock input (front active);
4) /R1 - first reset input;
5) Q1 - first straight output;
6) /Q1 - first inverted output;
7) D2 - second data input;
8) ^C2 - second clock input (front active);
9) /R2 - second reset input;
10) Q2 - second straight output;
11) /Q2 - second inverted output;
12) VCC - power +5V.
