Fort Sumter SHM Accelerometer Breakout

by siahman.

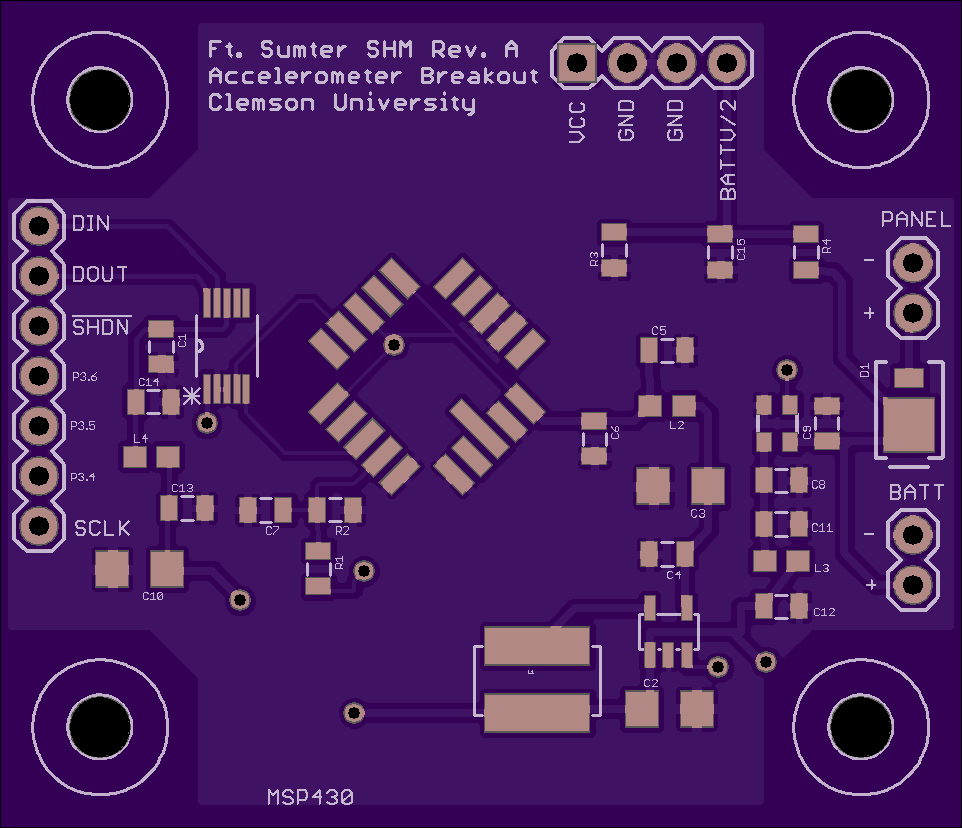

Top

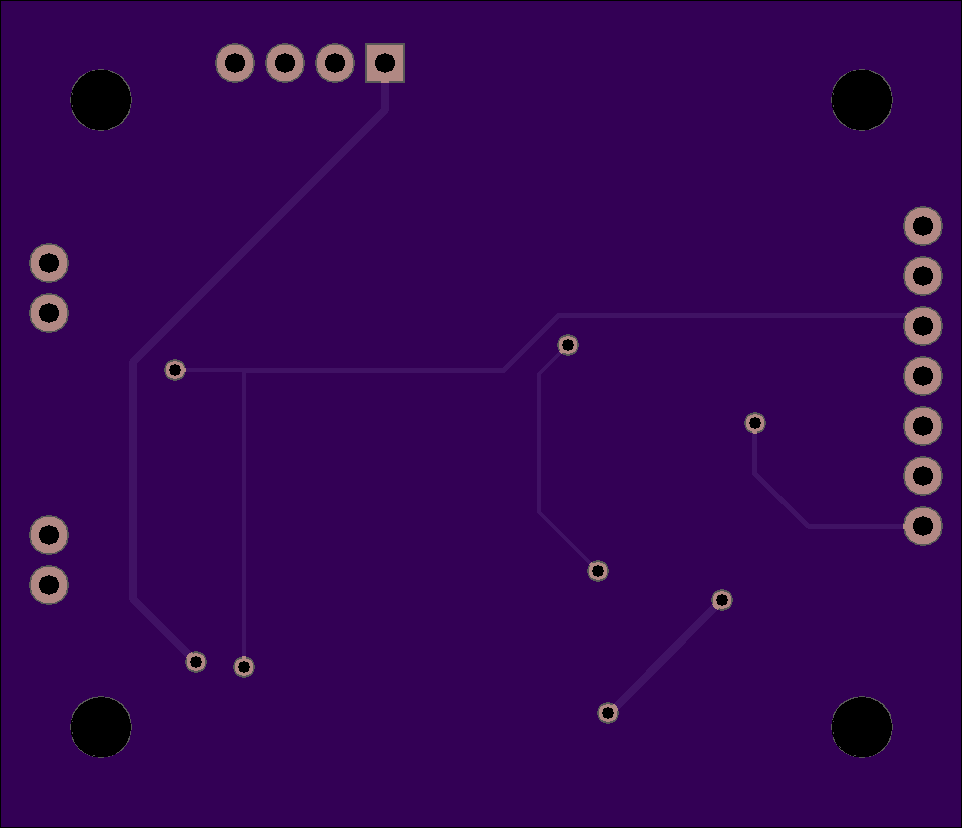

Bottom

2 layer board of 1.92x1.66 inches (48.82x42.04 mm).
Shared on March 14th, 2014 20:01.

Breaking out the SiliconDesigns high accuracy accelerometers, paired with a low power TI 16-bit ADC, that only monitors the low end of the Voltage for increased accuracy at low vibration.
