ESP8266 Breakout (ESP-01) v1.0

by dmcarth.

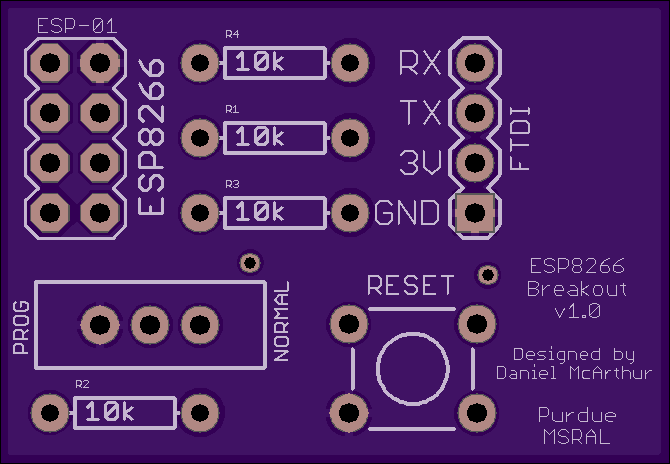

Top

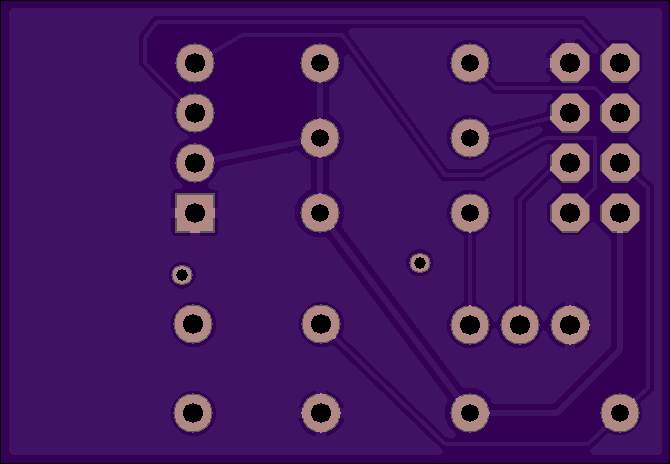

Bottom

2 layer board of 1.34x0.93 inches (33.96x23.49 mm).
Shared on February 22nd, 2017 15:18.

Breakout for ESP-01 WiFi Module (w/reset button)
