Discrete S-R Latch

by ccorn90.

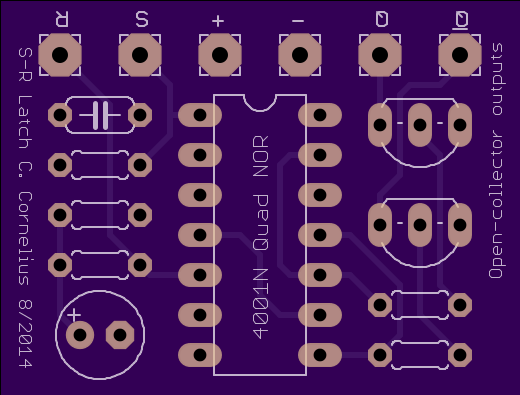

Top

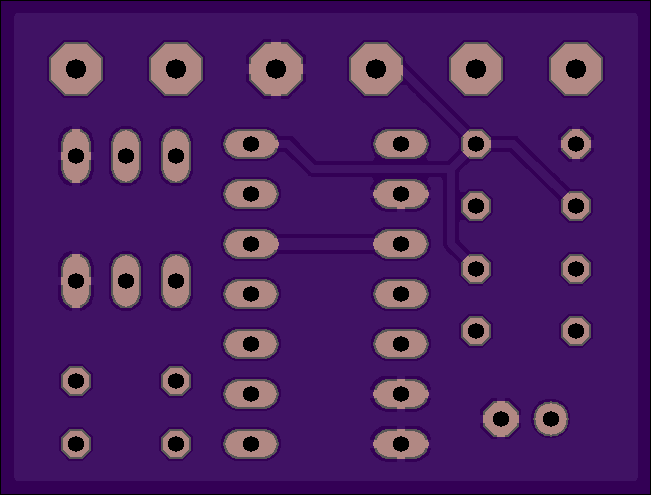

Bottom

2 layer board of 1.30x0.99 inches (33.02x25.07 mm).
Shared on August 30th, 2014 00:47.

Using x4001 quad NOR gate. Supply voltage up to 18V possible with CD4001BEE4. Open collector outputs.
