BLF17-Linear-Z

by Mattaus.
Top
Bottom

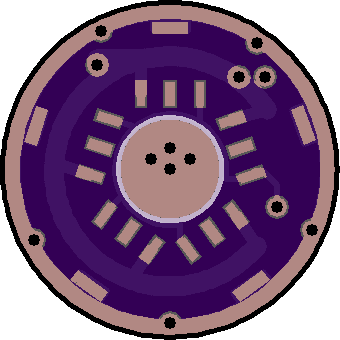

2 layer board of 0.68x0.68 inches (17.27x17.27 mm).
Shared on April 23rd, 2014 06:56.

BLF17-L-Z

8x7135 Linear LED Driver. Zener Modified.

D1: 4.3V Zener SOD-323
C1: 0.1uF 0603
R1: 100ohm 0603
R2: VDIV1 0603
R3: VDIV2 0603
U1: Attiny 20SSU
