TB6612FNG Breakout

by darrylh.

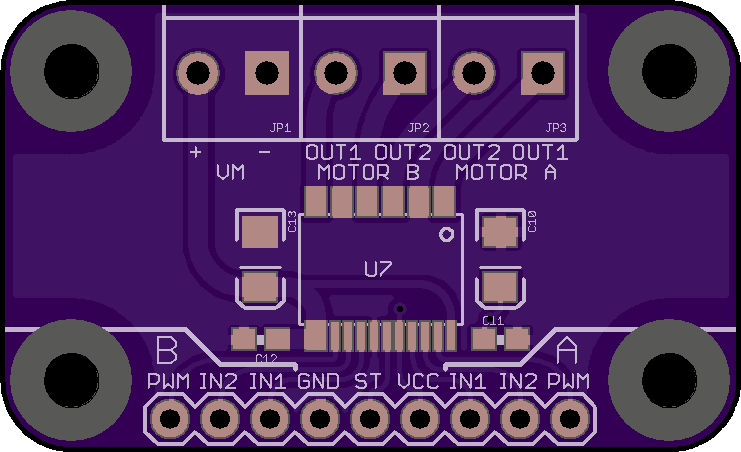

Top

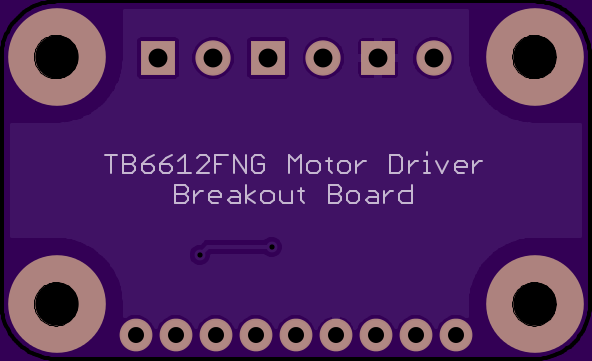

Bottom

2 layer board of 1.48x0.90 inches (37.64x22.96 mm).
Shared on August 5th, 2015 15:29.

Breakout board for Motor Driver TB6612FNG

The land pattern for the motor driver is non-standard. I’ve provided larger “double pads” for all those adjacent pins that supply the motors.

  • 1x TB6612FNG (Digikey part TB6612FNGC8ELCT-ND)
  • 1x Screw terminal block (Digikey part A98040-ND)
  • 2x 10µF Capacitor, 3216 (Digikey part 478-8275-1-ND)
  • 2x 0.1µF Capacitor, 0603
