CREE MTG/XRE/XML/XPG solder paste stencil

by texaspyro.

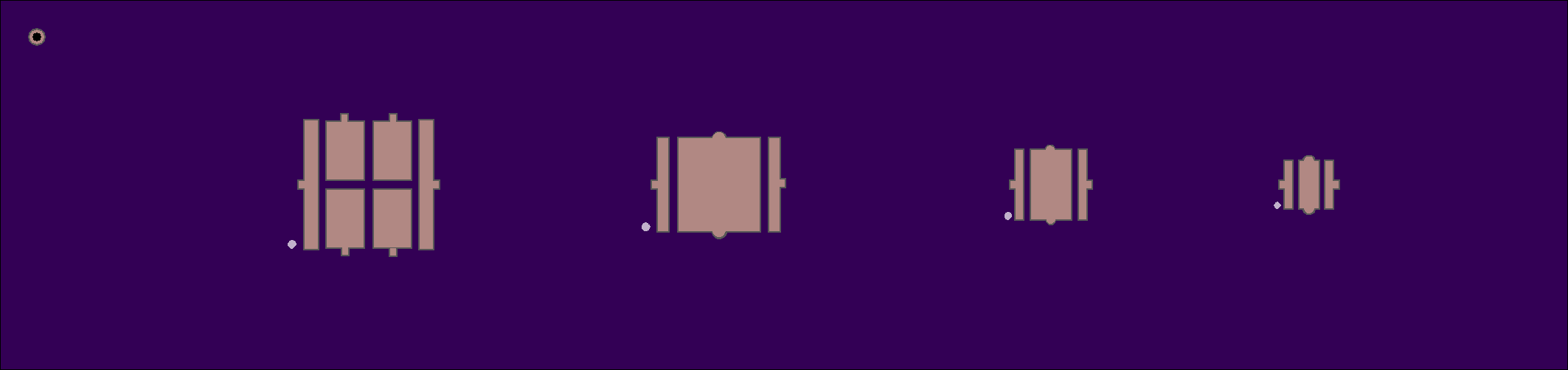

Top

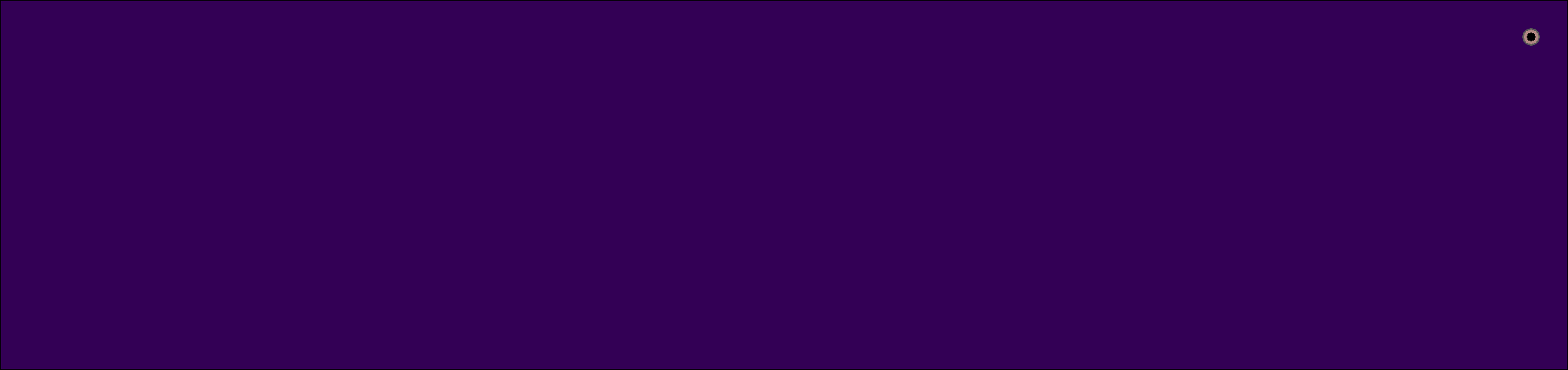

Bottom

2 layer board of 4.25x1.00 inches (107.98x25.43 mm).
Shared on February 6th, 2014 22:35.

Use this for a solder paste stencil for Cree MTG/XRE/XML/XPG leds.

Submit the .BRD file to OSHSTENCILS.COM for an affordable high quality solder paste stencil for manual pasting of LED MCPCBs.

Some discussion here: http://budgetlightforum.com/node/23251?page=2#comment-535059
