RC2014 Board 5 - Clock & Reset

by semachthemonkey.

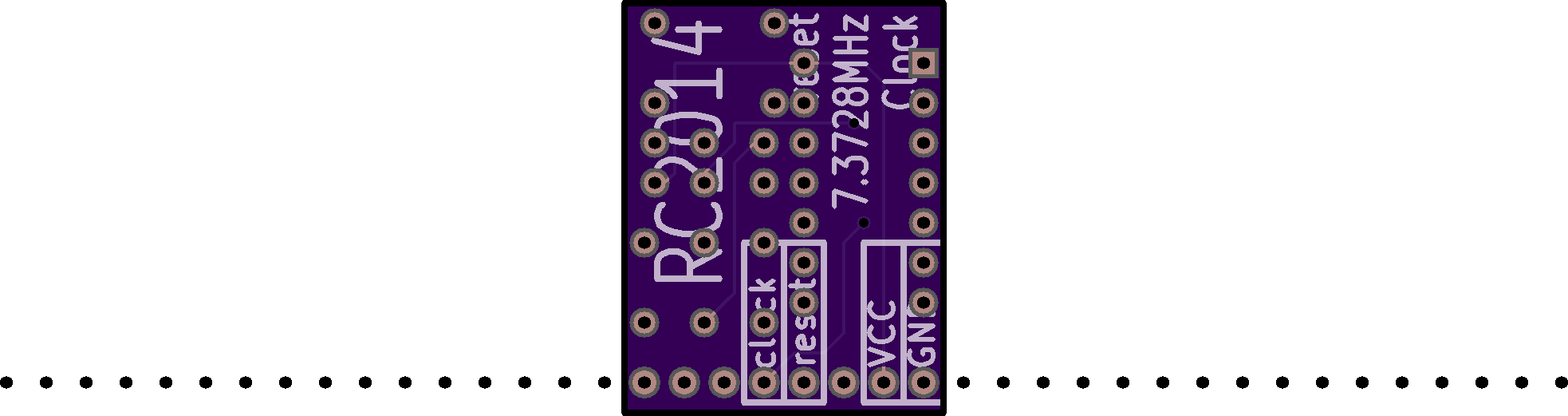

Top
Bottom

2 layer board of 0.82x1.04 inches (20.73x26.42 mm).
Shared on July 31st, 2014 18:52.

Simple multiboard Z80 computer I designed for Retro Challenge 2014. For more info see http://www.sowen.com/category/retro-challenge/ Tested and working. Uses 74HCT04, 7.3728Mhz xtal, 22pf caps, R1=2.2K, R2=1M, R3=1k
