ATtiny861-ISP rev 3

by KO4XL.

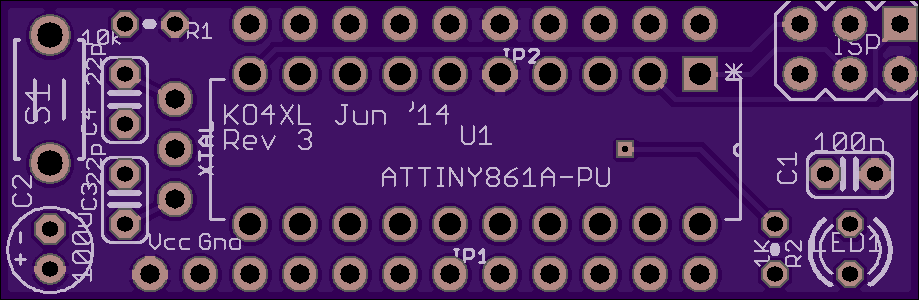

Top

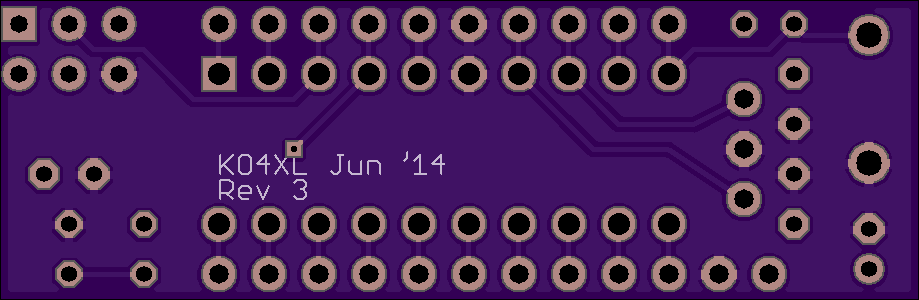

Bottom

2 layer board of 1.84x0.60 inches (46.69x15.24 mm).
Shared on June 18th, 2014 03:33.

Prototyping module for ATtiny 26/x61. Improved layout and place for crystal or resonator.
