ProtoBdc.brd

by don6699.

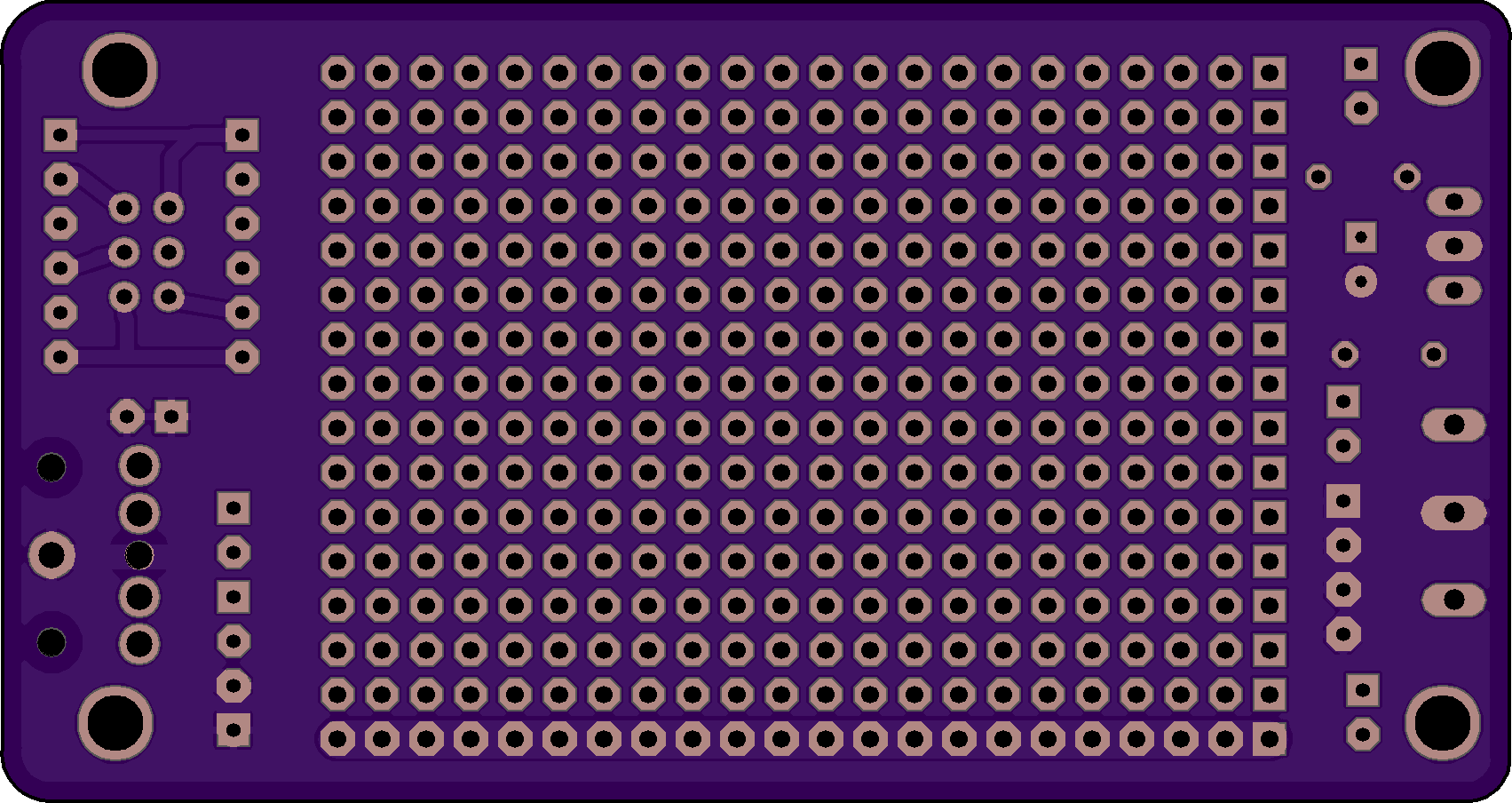

Top
Bottom

2 layer board of 3.41x1.81 inches (86.49x45.90 mm).
Shared on December 1st, 2016 07:17.

Updated, found one like this on the net but took it to a new level, has program header for pic and Arduino, just add the appropriate jumpers. ps has not been tested Yet, have changed out the avr header. thanks
