ProMini clock shield with HDSP-2534 display

by FlorinC.

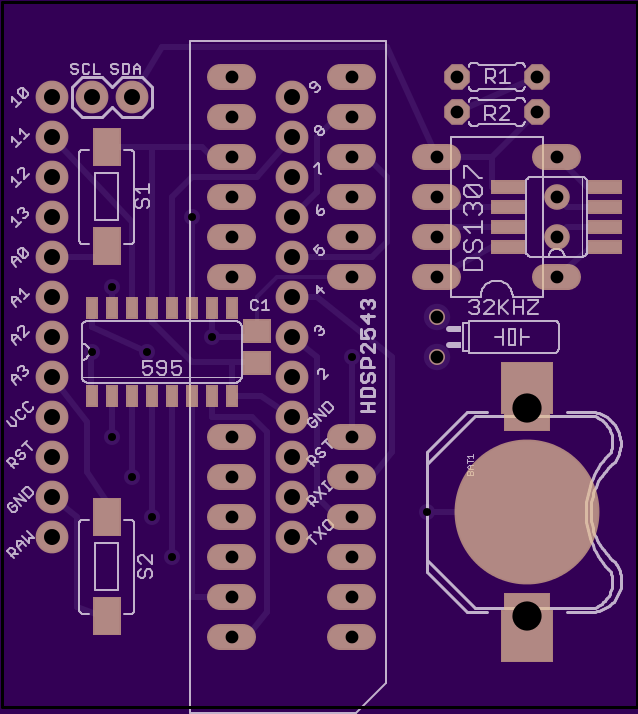

Top

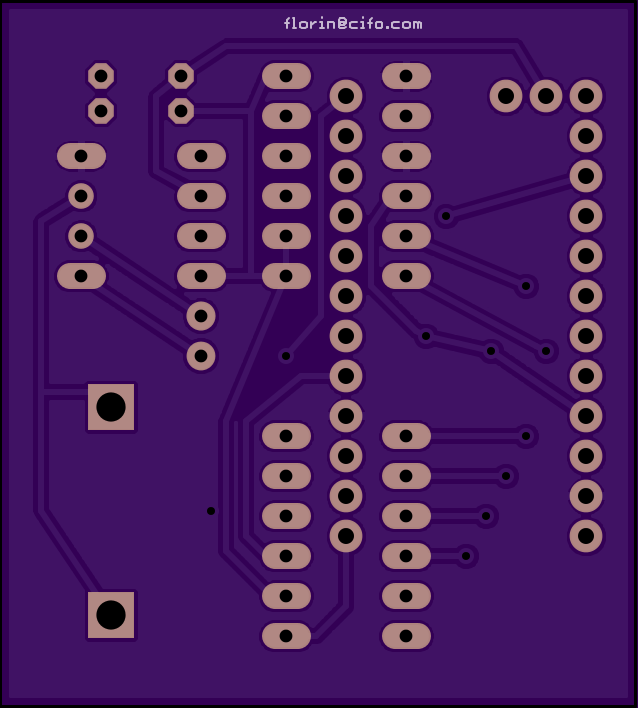

Bottom

2 layer board of 1.60x1.77 inches (40.54x44.98 mm).
Shared on August 8th, 2014 11:41.

ProMini clock shield with DS1307 and HDSP-2534 LED 8-character display.

Tested and confirmed working. Compatible (schematic, software) with this clock
